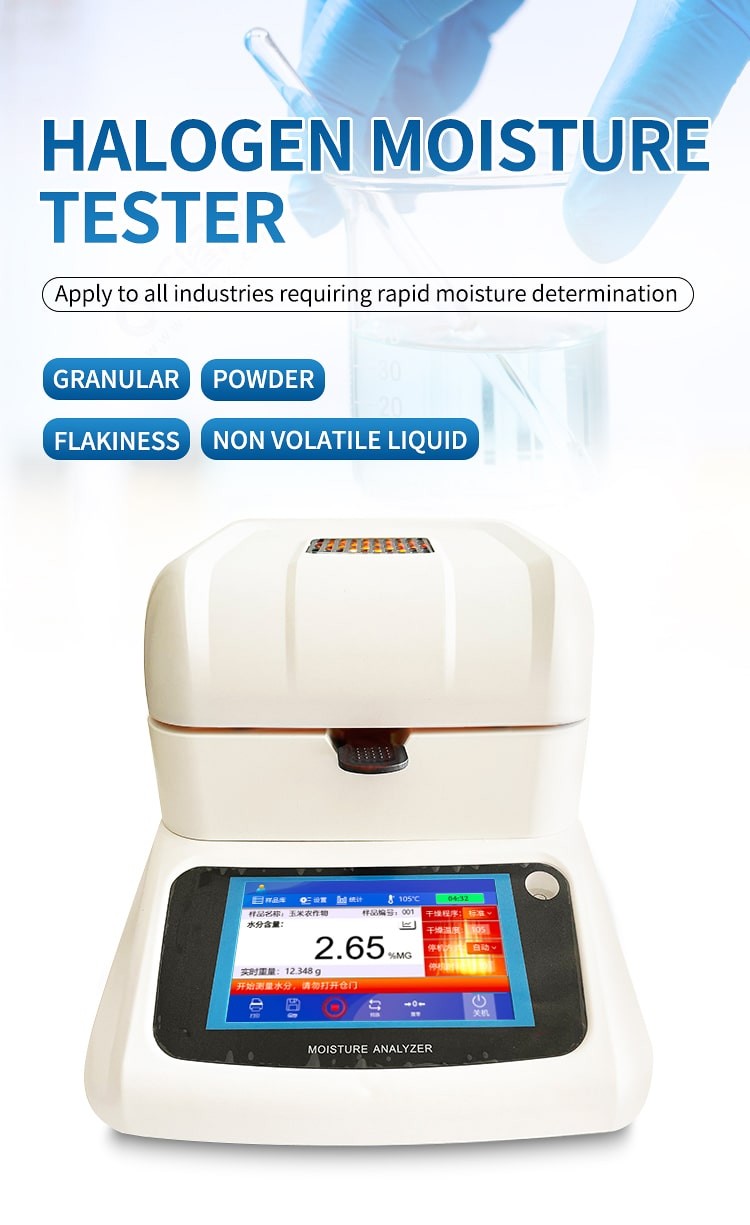

Halogen Moisture Analyzer

Product Overview

The HM-LS5 from HM Instruments combines a halogen heater with a weighing system to measure sample mass loss during drying. It displays moisture and dry-residue results for compatible solid, granular, powdered and other laboratory samples.

Key Features

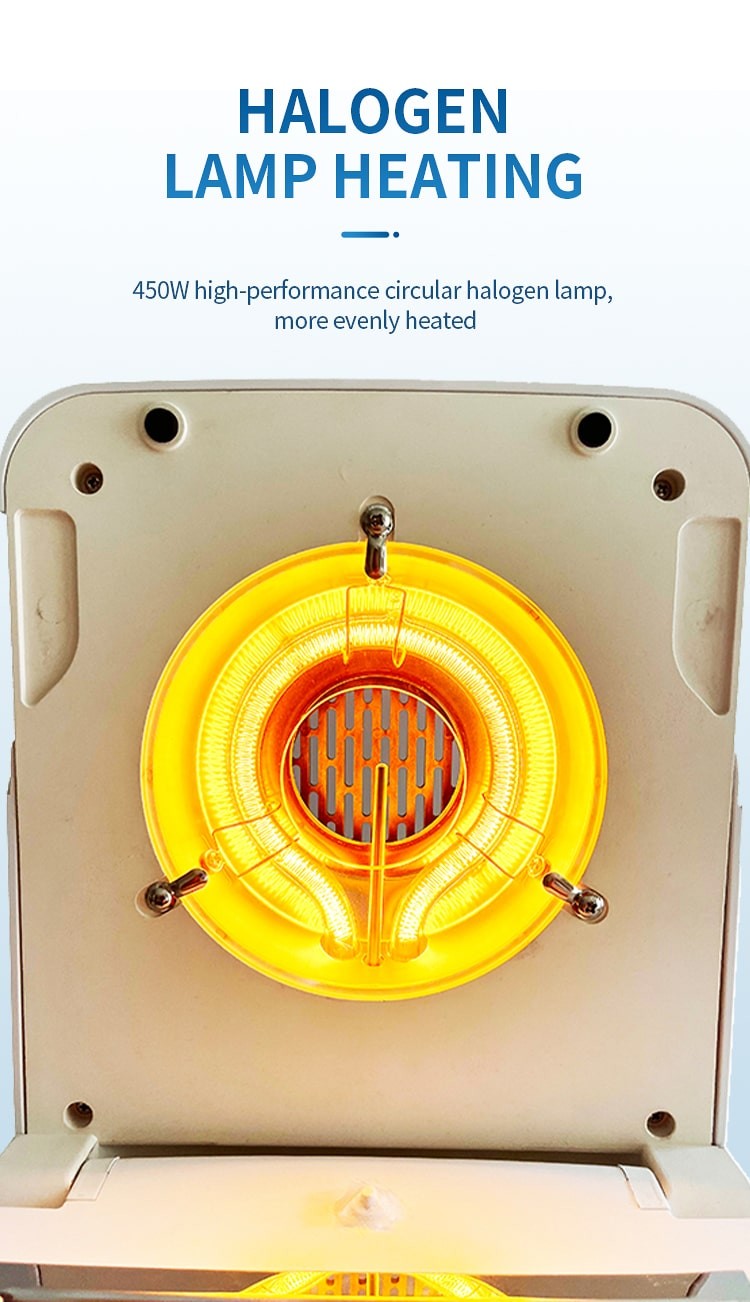

• Halogen heating with adjustable temperature and drying time supports repeatable sample procedures.
• External calibration and a 90 mm sample pan support routine weighing checks and sample preparation.

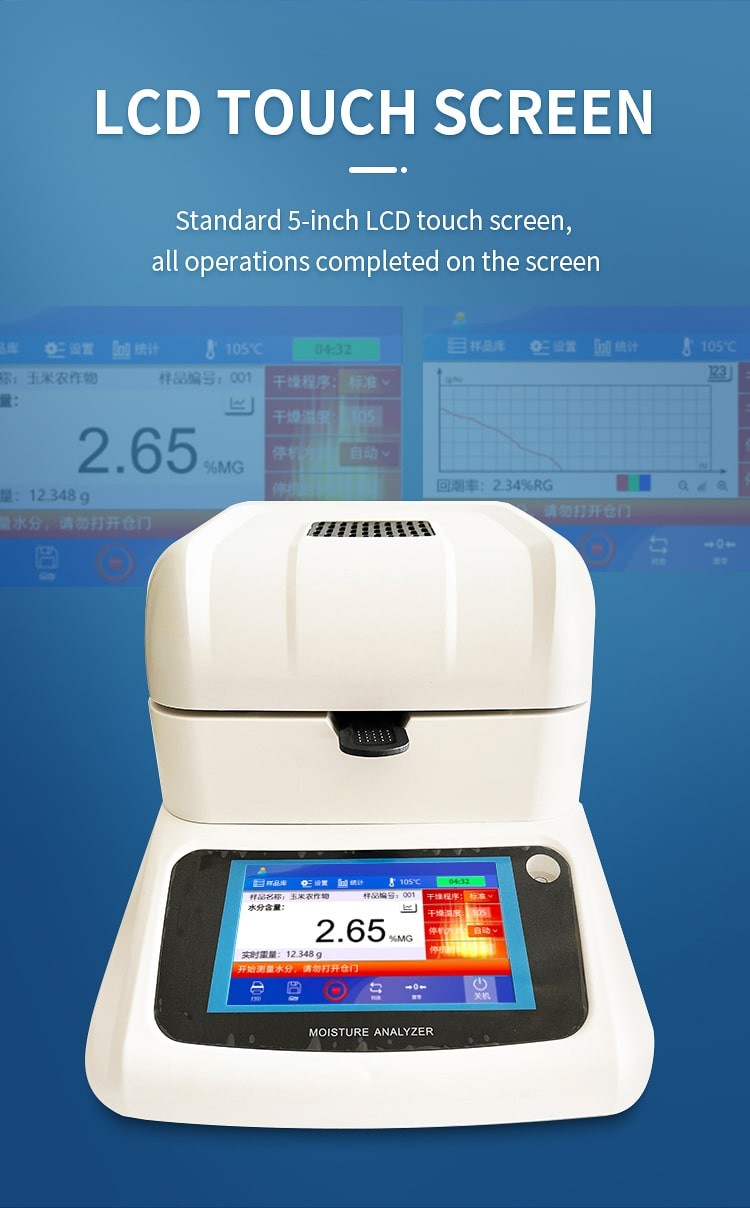

• A 5-inch touchscreen displays results and supports sample identification and stored records.
• RS232 connectivity supports connection to a computer or compatible printer; USB storage is optional.

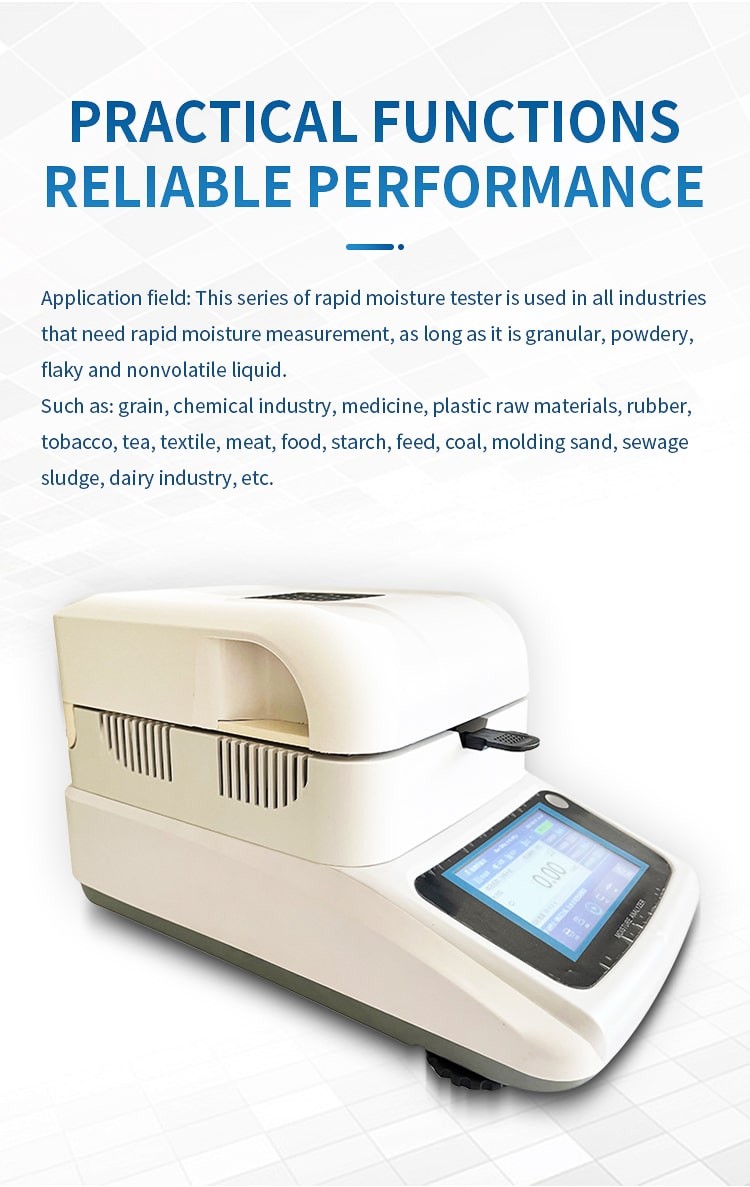

Applications

Use for moisture assessment in compatible grain, feed, food, agricultural and laboratory materials. Select a drying method for the material and spread the sample evenly on the pan. Other volatile components can contribute to mass loss, so loss on drying may differ from a water-specific result.

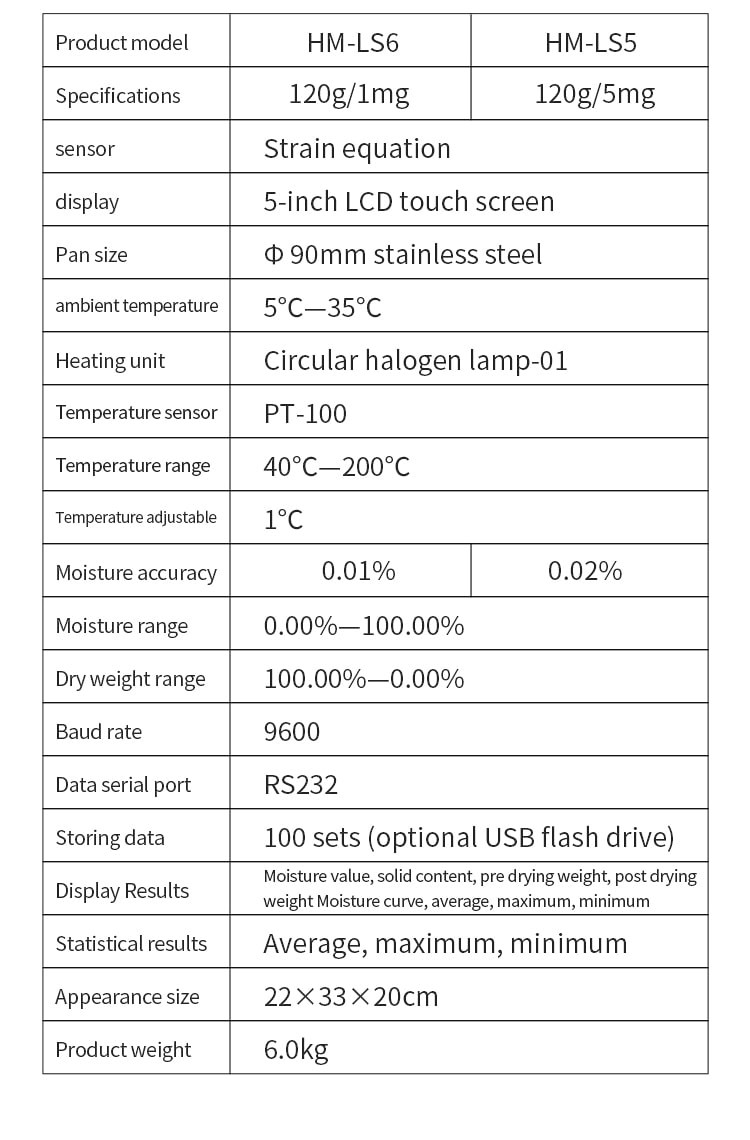

Technical Specifications

Operation and Support

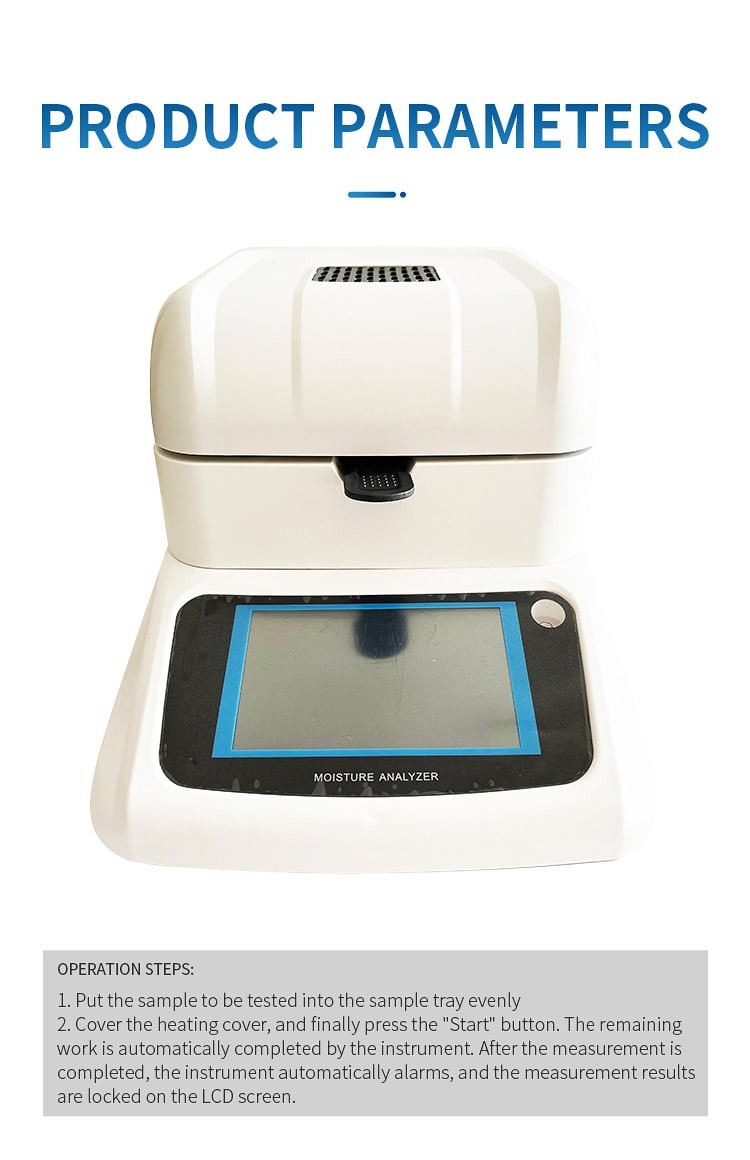

Calibrate the balance, place a representative sample evenly on the pan, close the heater cover and start the selected drying procedure. Match sample mass, drying temperature and endpoint conditions to the material and the weighing capacity. Allow the heated pan to cool before handling.

Product Enquiries

Tell our sales representative your sample type, measurement task and configuration needs for product enquiries and coordination of service requests.
