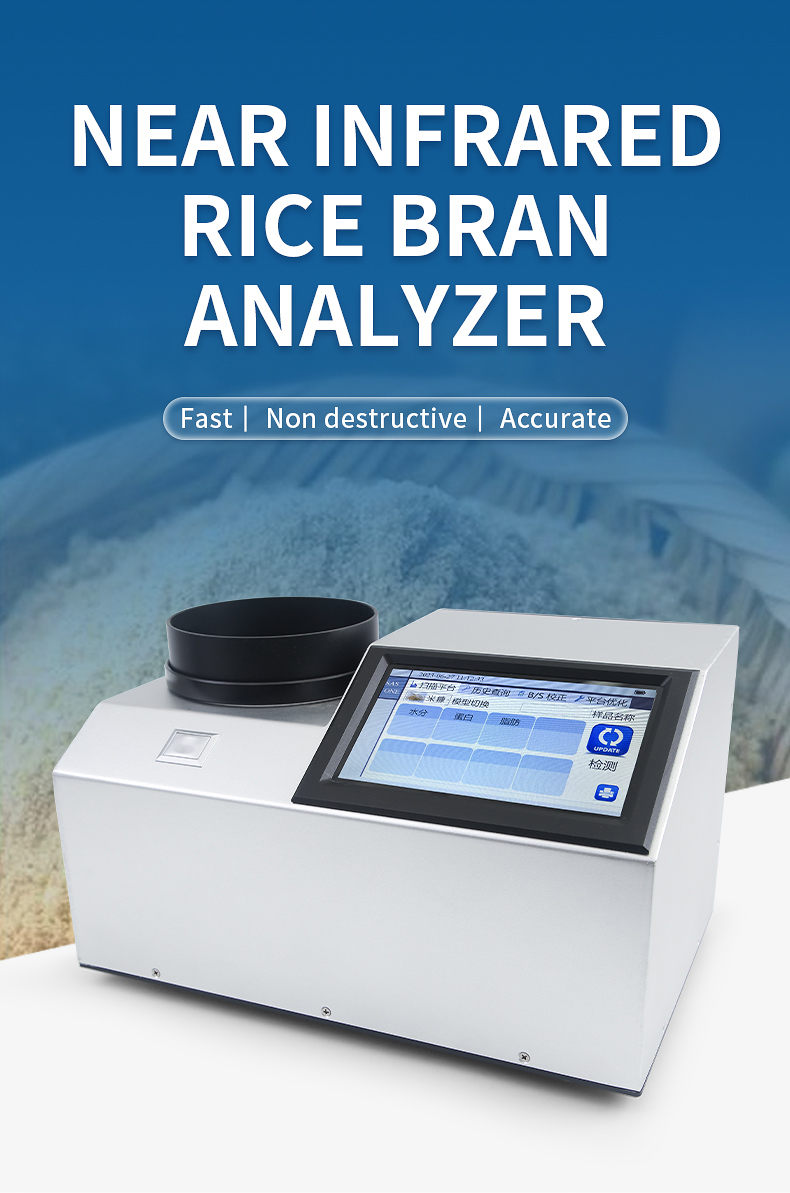

NIR Rice Bran Analyzer

Product Introduction

The near-infrared rice bran analyzer is an analytical instrument developed for grain detection and analysis. It can quickly, accurately, and non destructively detect various indicators such as protein, fat, and moisture in samples. The instrument is small in size and light in weight, making it easy to carry in storage workshops and trucks for grain detection and analysis.

The near-infrared rice bran analyzer is a simple to operate and easy to measure instrument, with results obtained in about 1 minute. Can work under 220V AC power supply or 12V DC power supply, and can be used in harsh operating environments. No need to crush or prepare samples, the instrument can be upgraded at any time.

Product Features

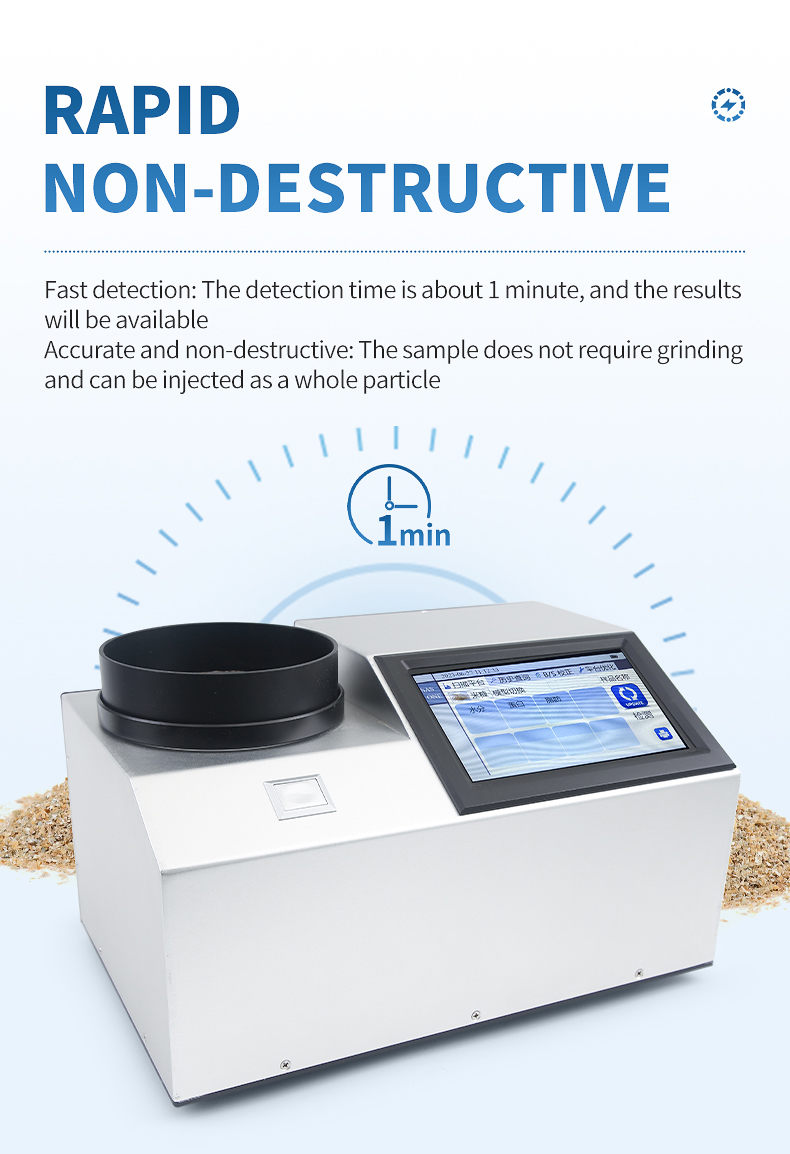

1. Quick: detection time only takes 1 minute

2. Non destructive: The sample does not require grinding and can be injected as a whole particle

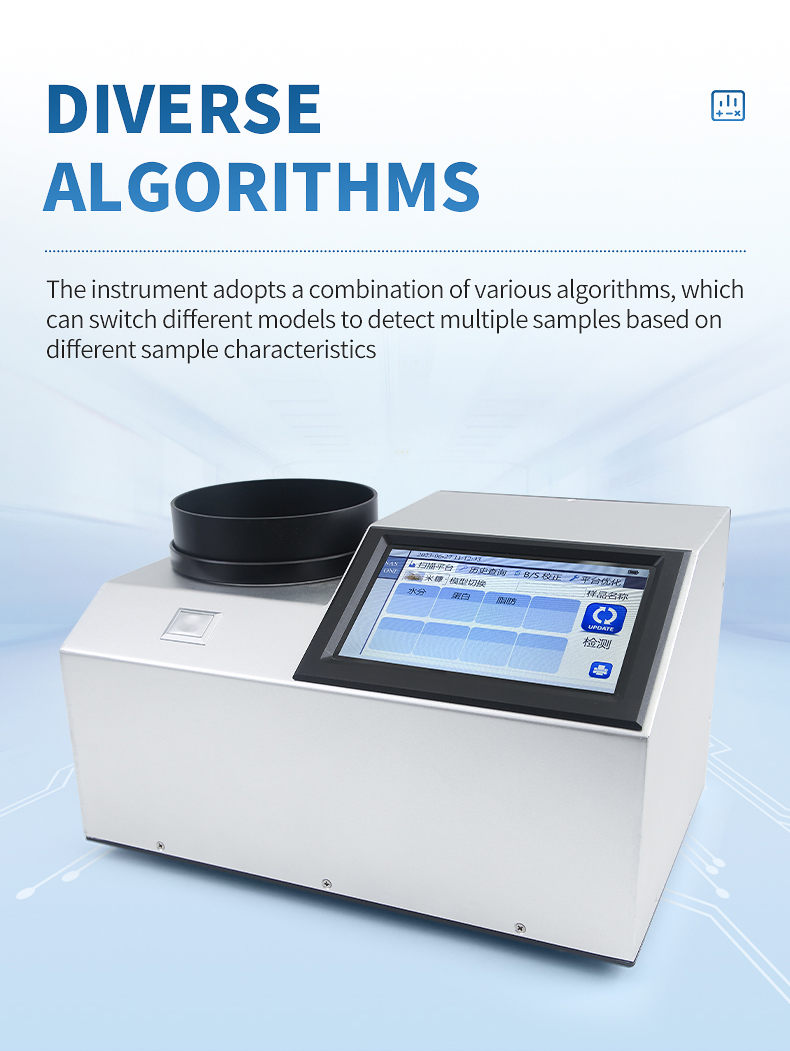

3. Diversity: The instrument adopts a variety of different algorithm combinations, which can switch different models to detect multiple samples based on different sample characteristics.

4. Diversified power supply: AC/DC power supply.

5. Voice operation: The machine can be operated through voice commands

6. Convenient to carry: 6KG weight, easy to carry

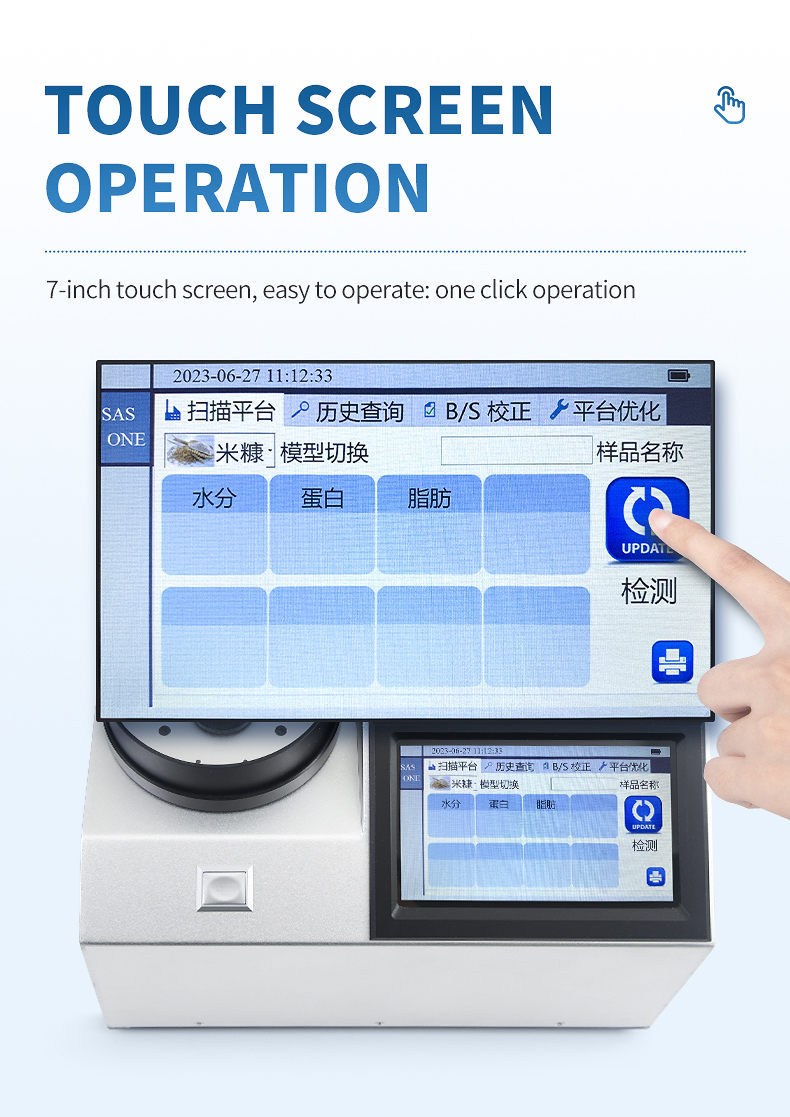

7. Easy to operate: one click operation

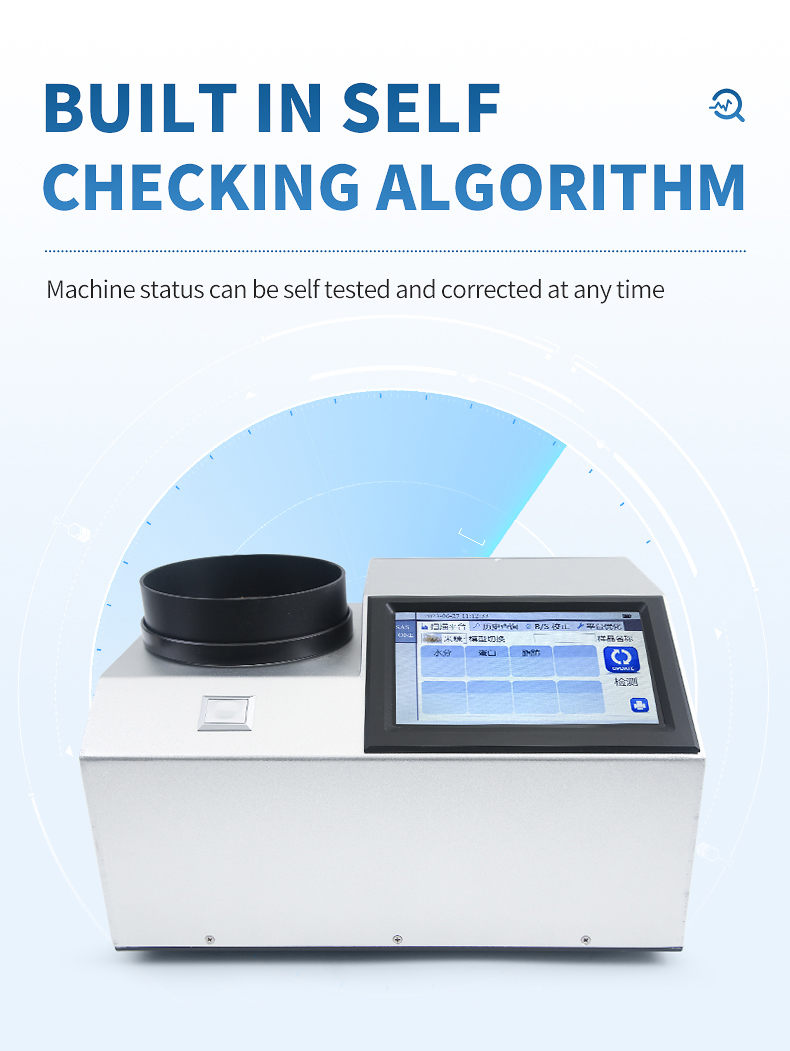

8. Instrument self-test: Built in self-test algorithm, can self-test the machine status and correct it at any time

9. Remote customer service: Built in remote customer service, manufacturers remotely operate machines to solve problems for customers

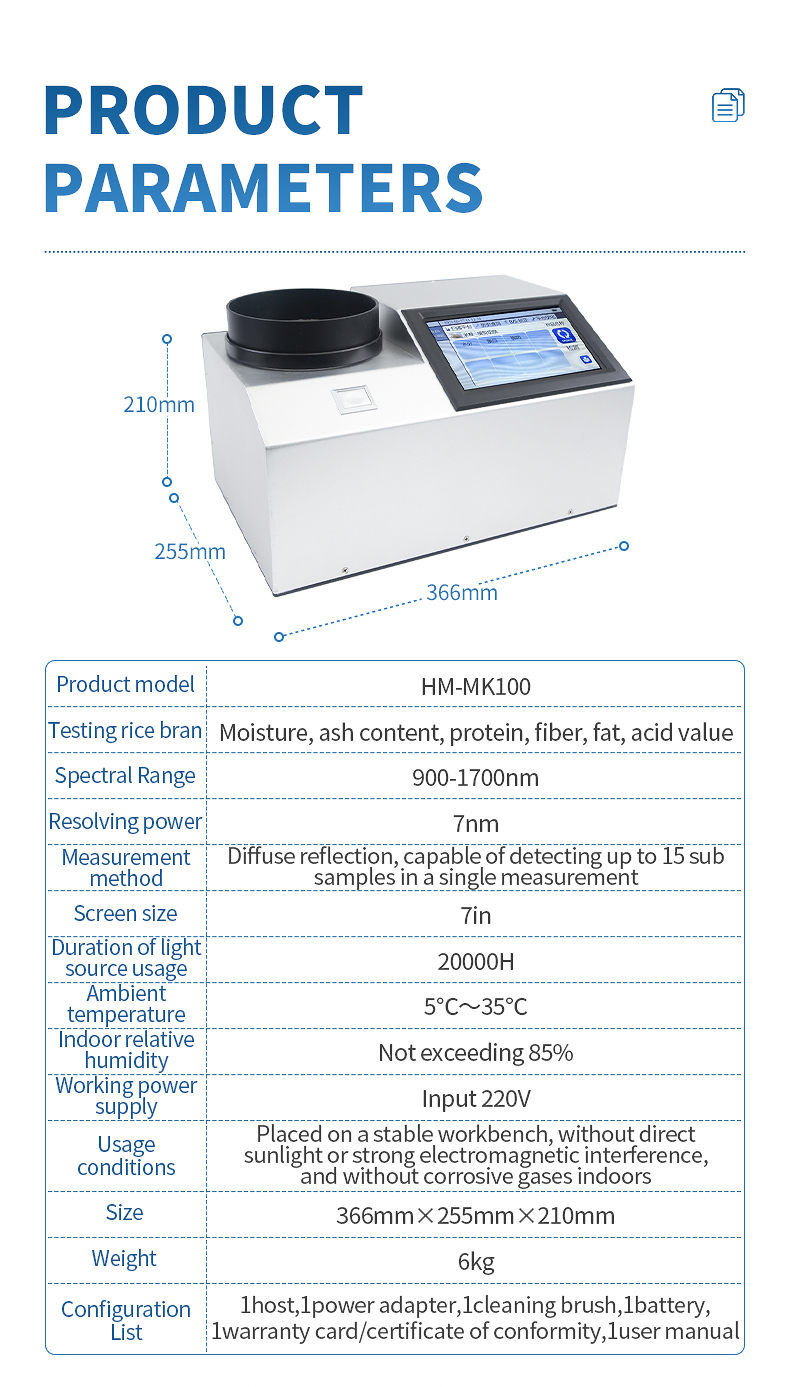

Product Parameters

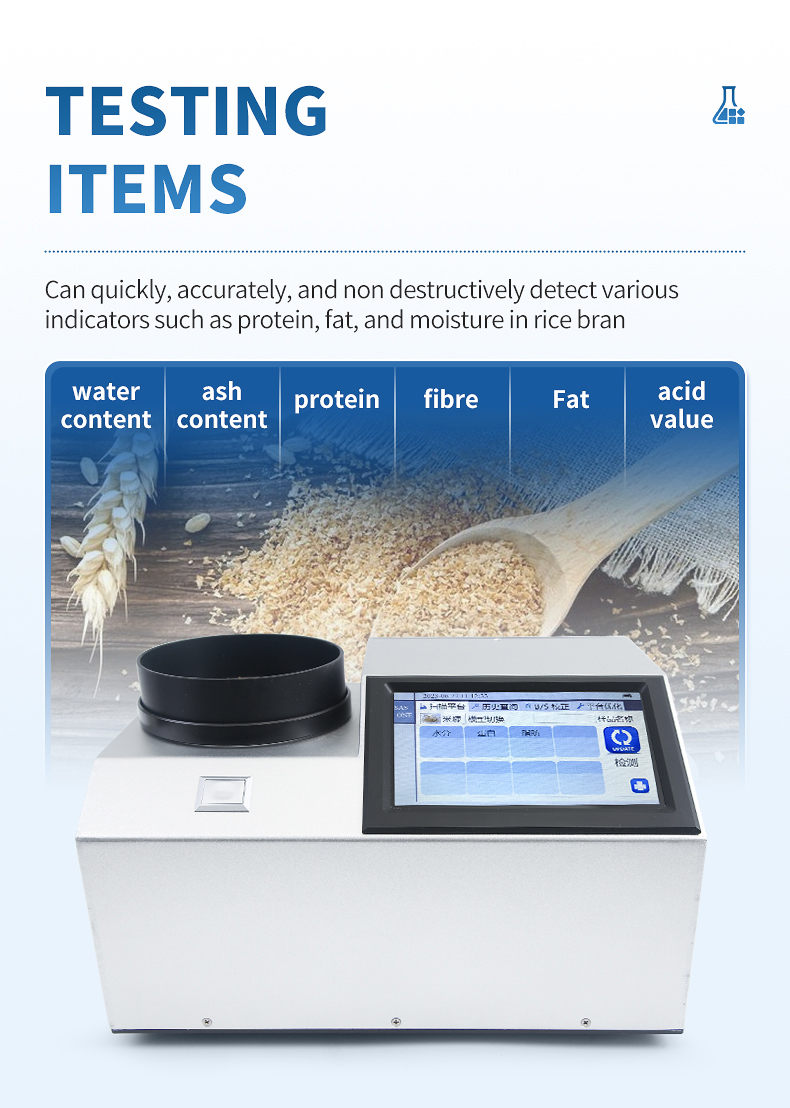

Testing rice bran: moisture, ash content, protein, fiber, fat, acid value;

Spectral range: 900-1700nm;

Resolution: 7nm;

Measurement method: diffuse reflectance, up to 15 sub samples can be detected in a single measurement.

Instrument size: 366mm X 255mm X 210mm

Instrument weight: 6kg;

Screen size: 7 inches;

Light source usage duration: 20000H

Environmental temperature 5 ℃~35 ℃

Indoor relative humidity not exceeding 85%

The instrument should be placed on a stable workbench, free from direct sunlight and strong electromagnetic interference

Indoor non corrosive gas

Working power supply: Input 220V

Configuration List

1. 1 host

2. 1 power adapter

3. 1 cleaning brush

4. 1 battery

5. 1 copy of warranty card and certificate of conformity

6. 1 user manual
