Automatic Seed Counter

【Introduction】Automatic seed counting with manual collection.

MODEL:HM-SL01

+86 17853698681

Product details

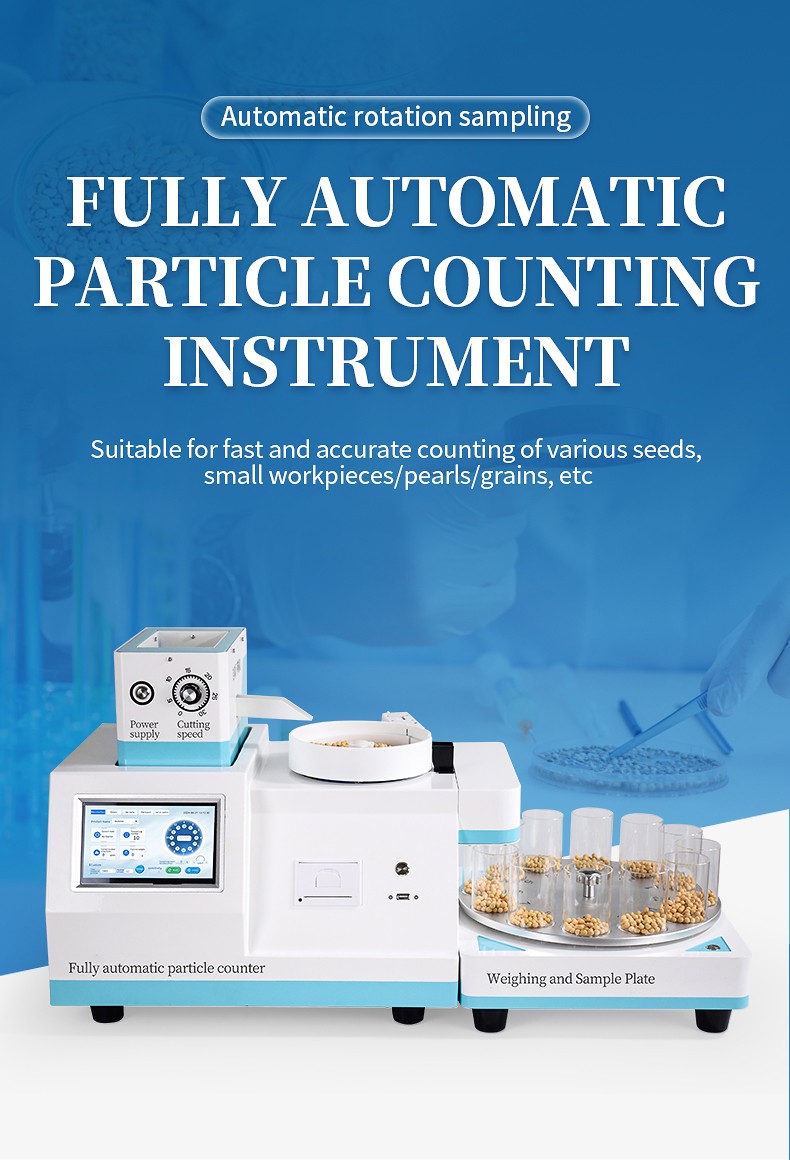

Fully automatic seed counter series with rotary sampling platform

Seed counter touchscreen sampling and printing features

Seed counting applications for crops and other particles

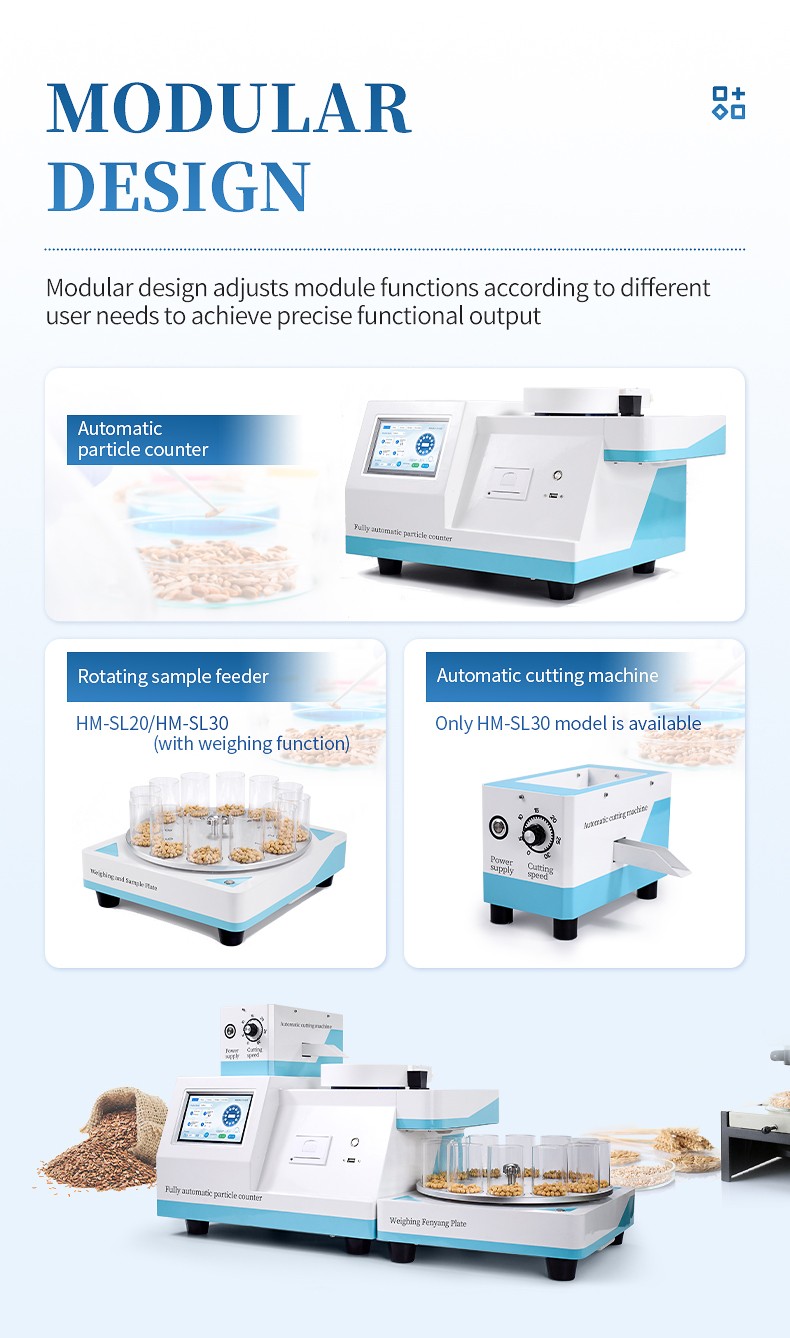

Modular counter rotary sampler and automatic feeder

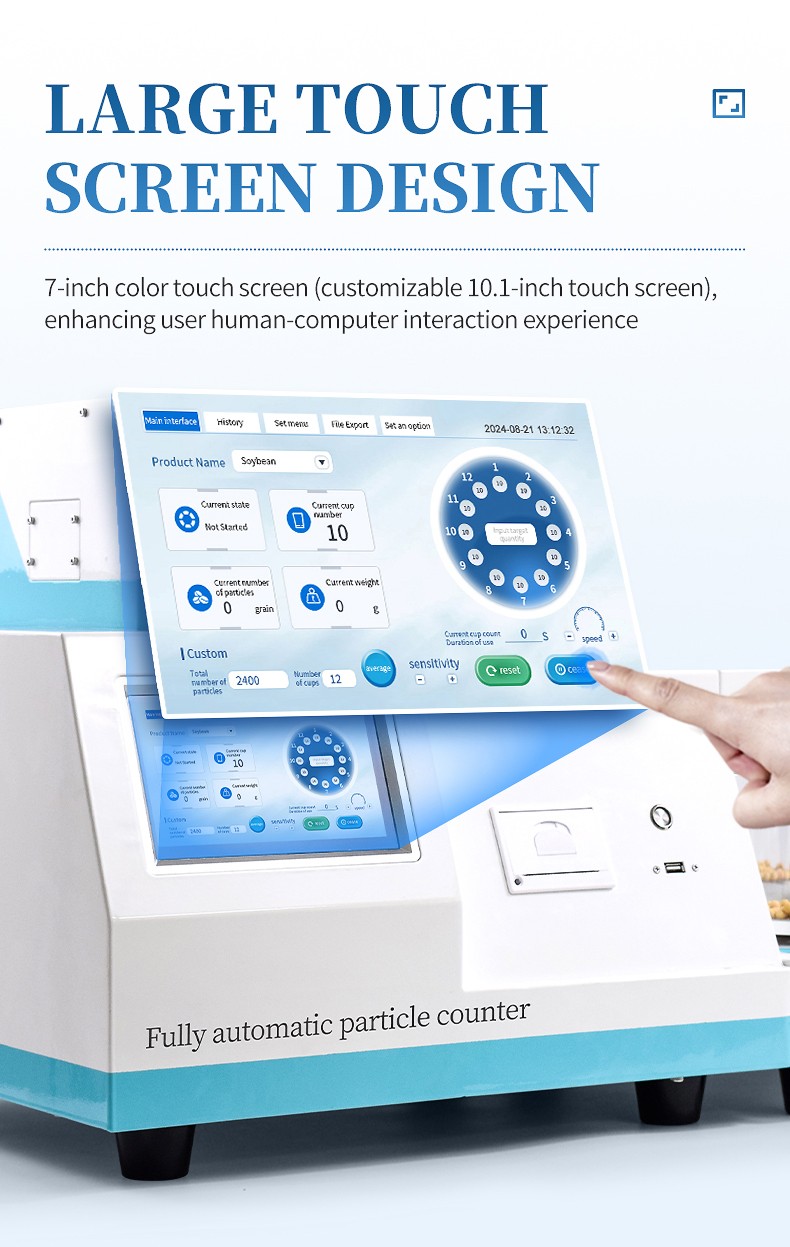

Seed counter touchscreen control interface

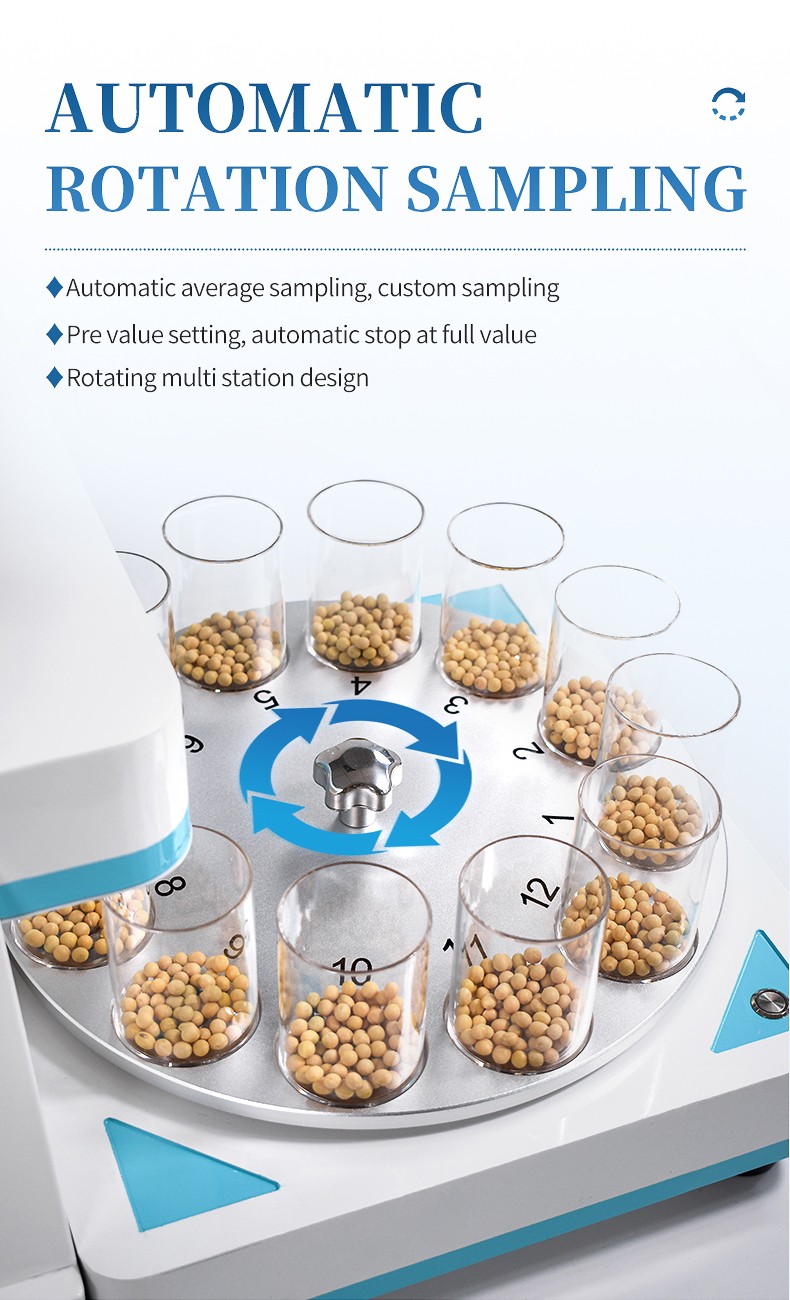

Twelve-station automatic rotary seed sampling

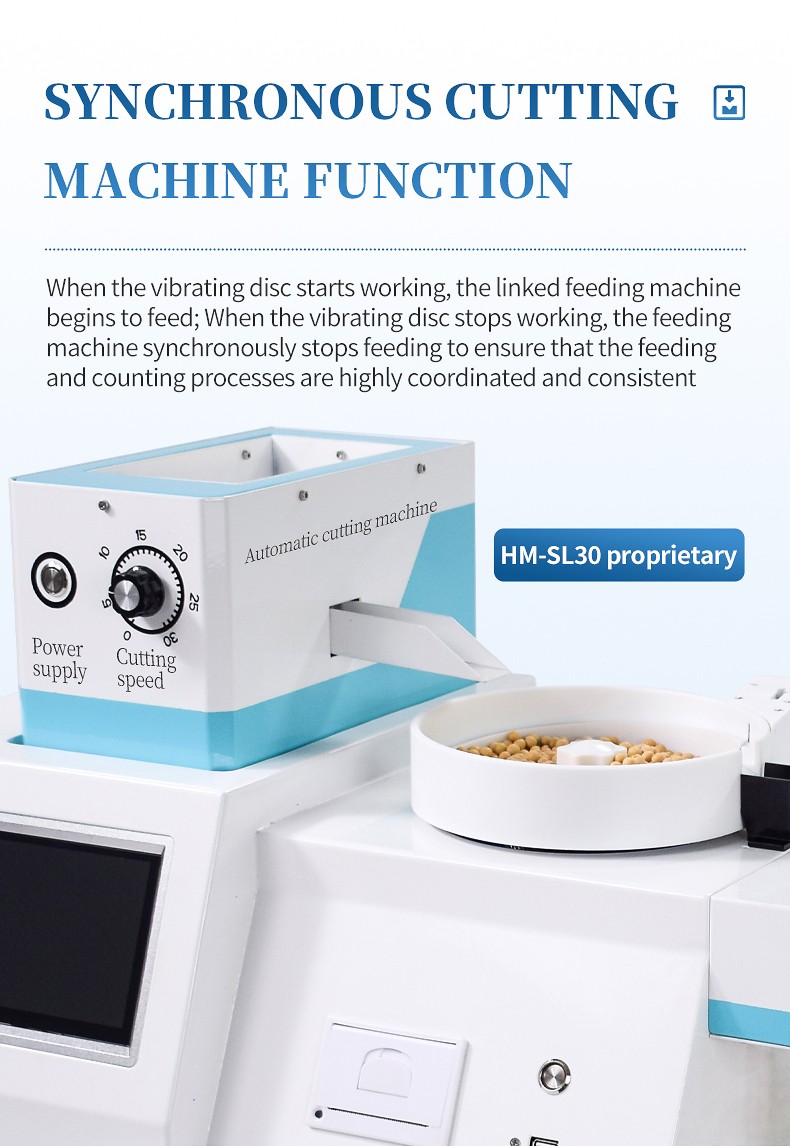

Synchronized automatic feeding module for HM-SL30

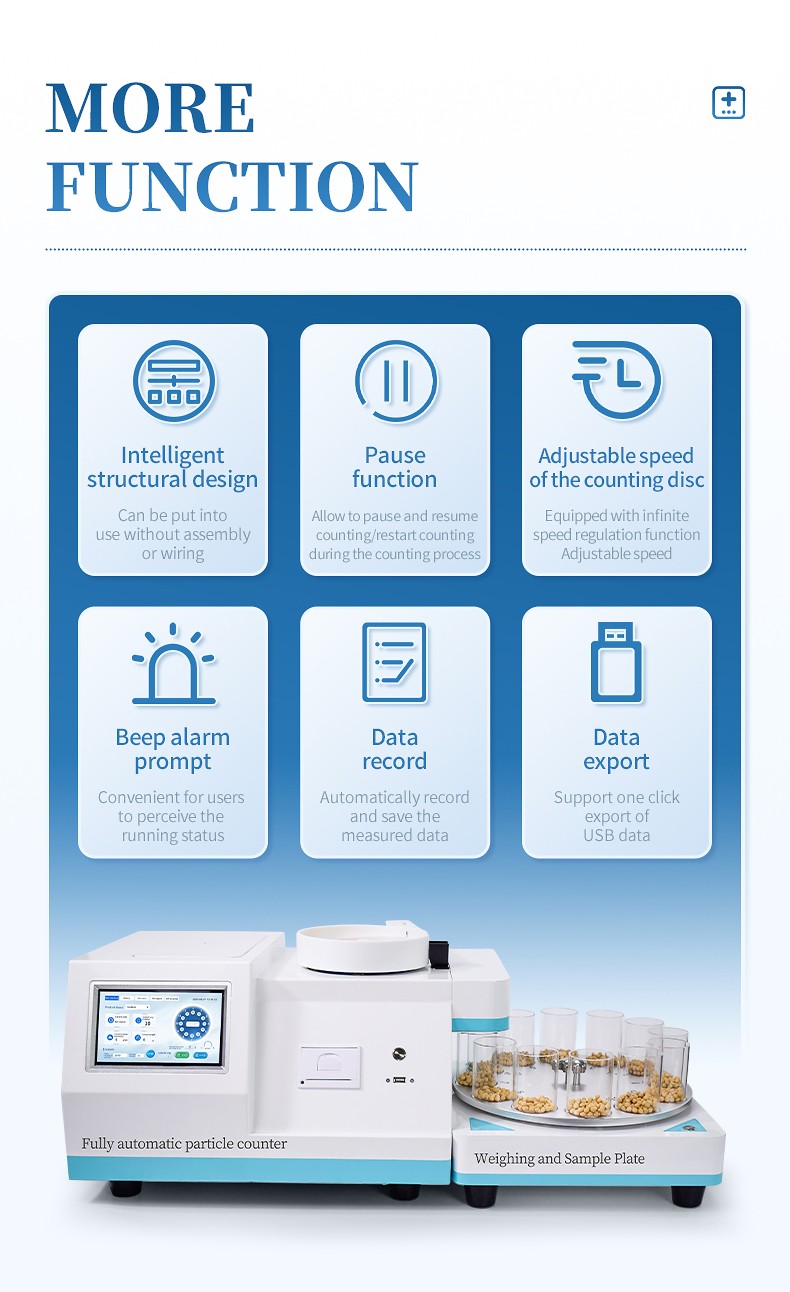

Seed counter pause speed alarm and data functions

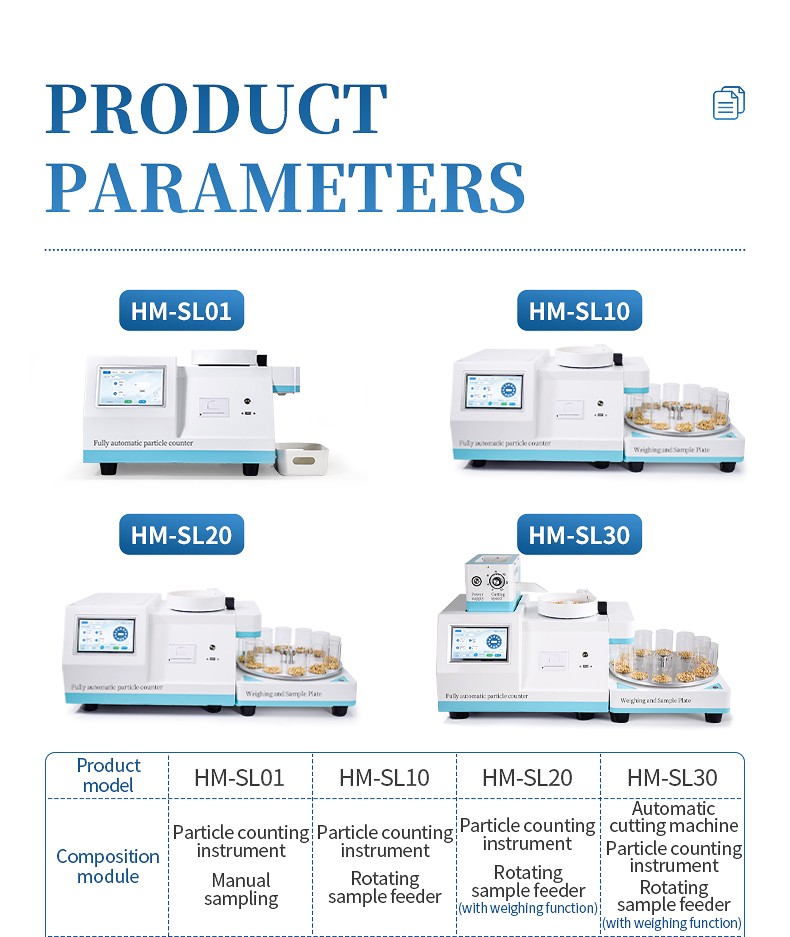

HM-SL01 HM-SL10 HM-SL20 HM-SL30 configuration comparison

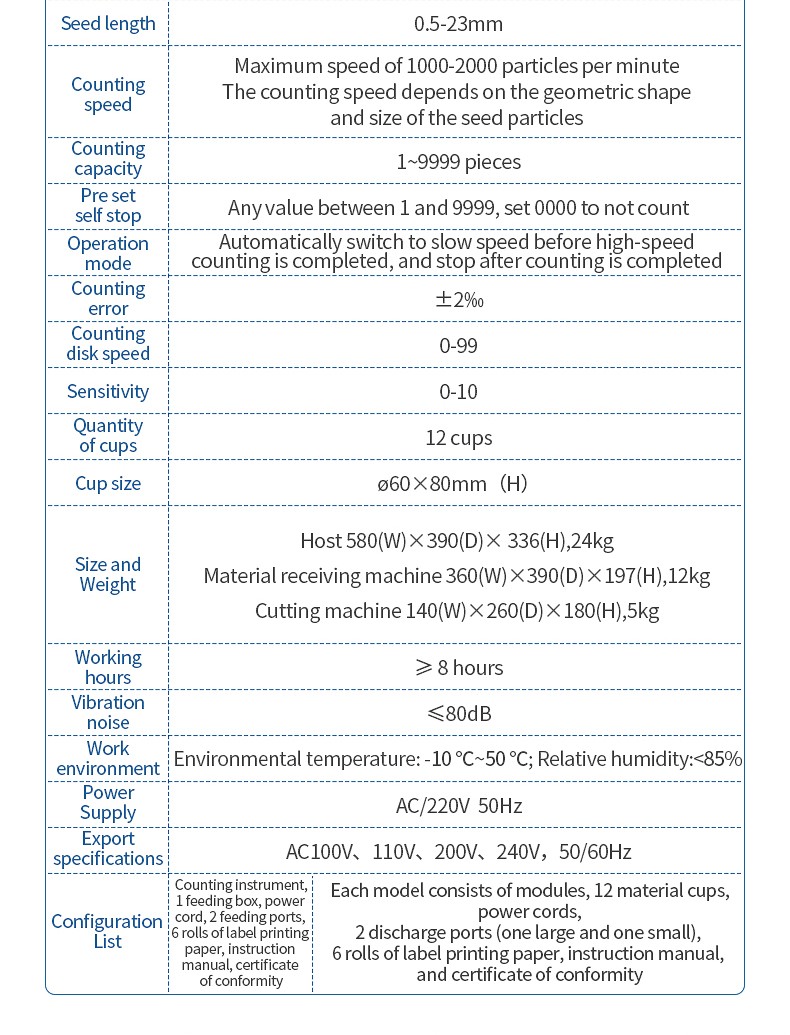

Seed counter dimensions operation and technical specifications

Hengmei company and staff group photograph

Hengmei laboratory scenes and company product overview

Product Overview

The HM Instruments HM-SL01 counts seeds for sample preparation and seed laboratory work. The counting unit dispenses seeds into a receiving box for manual collection.

Key Features

7-inch colour touchscreen with Chinese and English interface switching.
Preset counting stops the instrument when the selected quantity is reached.
Custom variety names and adjustable vibration settings for different samples.
Automatic result recording, local history viewing and USB export.
Built-in thermal adhesive-label printer for attaching sample records to seed bags.

Applications

Count individual seeds and prepare preset-count seed samples. Counting speed depends on particle geometry and size; adjust the vibration and sensitivity settings for the sample.

Technical Specifications

Parameter	Specification
Model	HM-SL01
Configuration	Automatic seed counting with manual collection
Seed length	0.5–23 mm
Maximum counting speed	1,000–2,000 seeds/min; depends on seed shape and size
Counting capacity	1–9,999 seeds
Counting error	±2‰
Sensitivity setting	0–10
Display	7-inch colour touchscreen
Data output	Thermal adhesive-label printing and USB export
Main unit dimensions (W × D × H)	580 × 390 × 336 mm
Main unit weight	24 kg
Vibration noise	≤80 dB
Operating environment	−10 to 50°C; relative humidity <85%
Power configurations	AC 220 / 100 / 110 V, 50/60 Hz

Configuration / Accessories

Seed counting unit
Receiving box
Power cable, discharge ports and thermal label paper
Instruction manual and certificate of conformity

Related Models

HM-SL01 provides manual collection after counting. HM-SL10 adds 12-cup rotary sampling. HM-SL20 adds weighing and thousand-seed weight calculation. HM-SL30 combines rotary sampling and weighing with a synchronized automatic feeder.

Operation and Support

Enter the variety name and preset count, then adjust the vibration and sensitivity settings for the seed type. Review saved results and print labels or export records through USB after counting.
