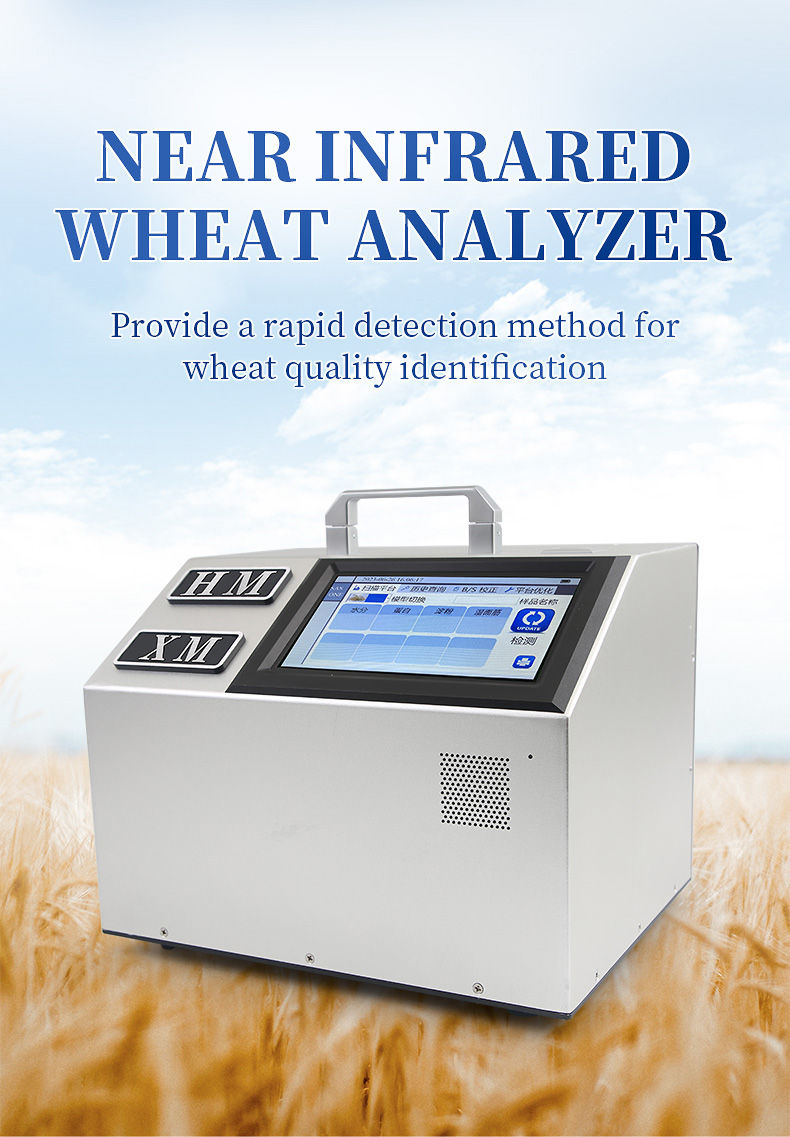

Near-Infrared Wheat Analyzer

Product Introduction

The portable wheat analyzer can be used for rapid, non-destructive, and multi index quantitative detection and analysis of multiple links such as wheat acquisition, storage, and processing, providing a fast detection method for wheat quality identification. The instrument can be applied to different occasions such as laboratories, workshops, and field sites.

Product Features

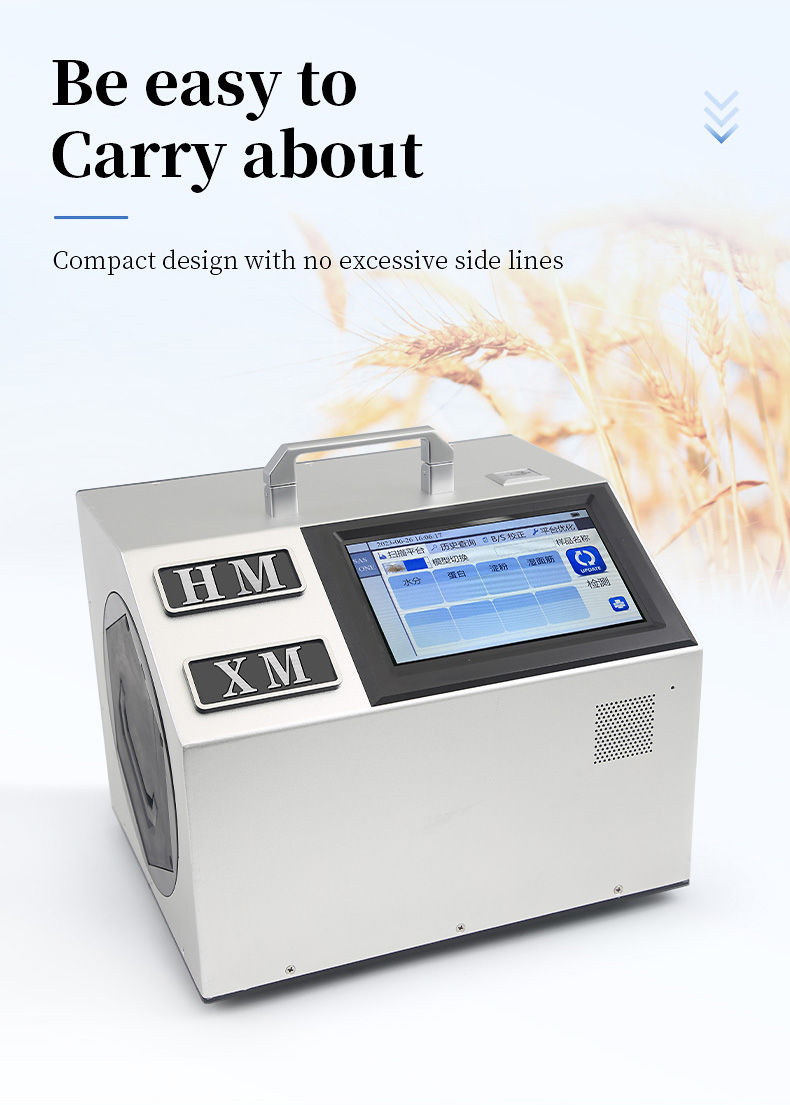

1. The instrument is designed to be compact and easy to carry, without excessive side line design.

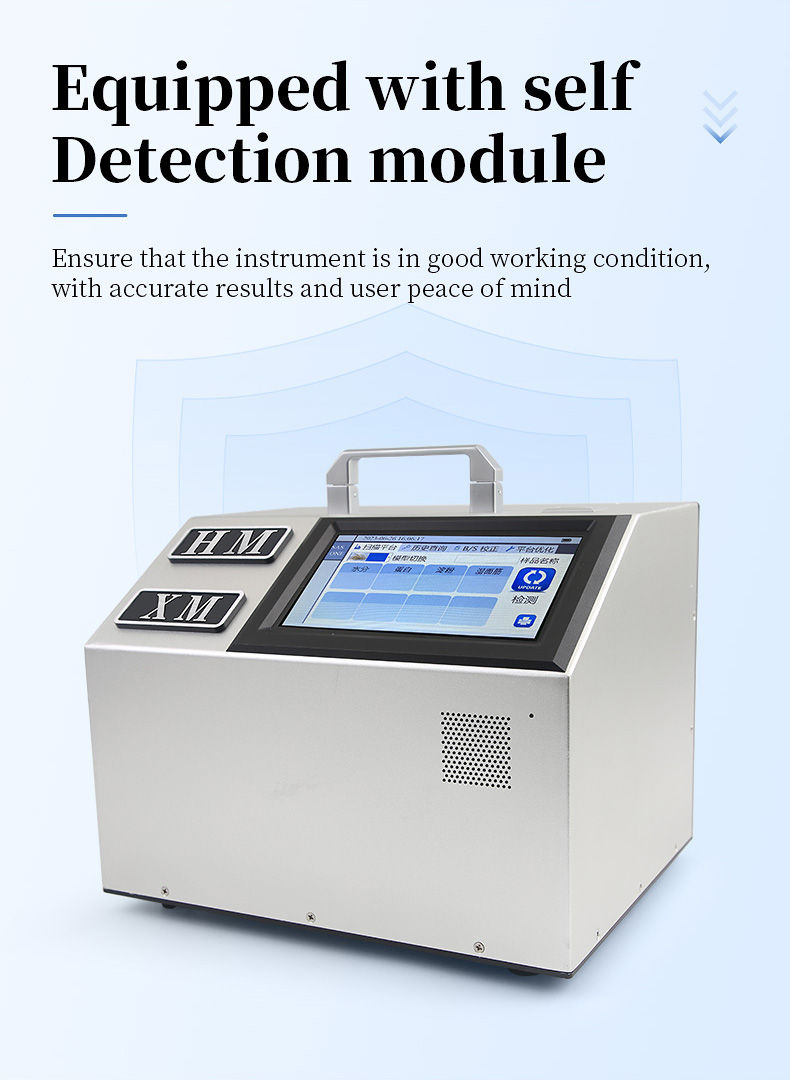

2. Equipped with a self testing module, the instrument ensures good working condition, accurate results, and peace of mind for users.

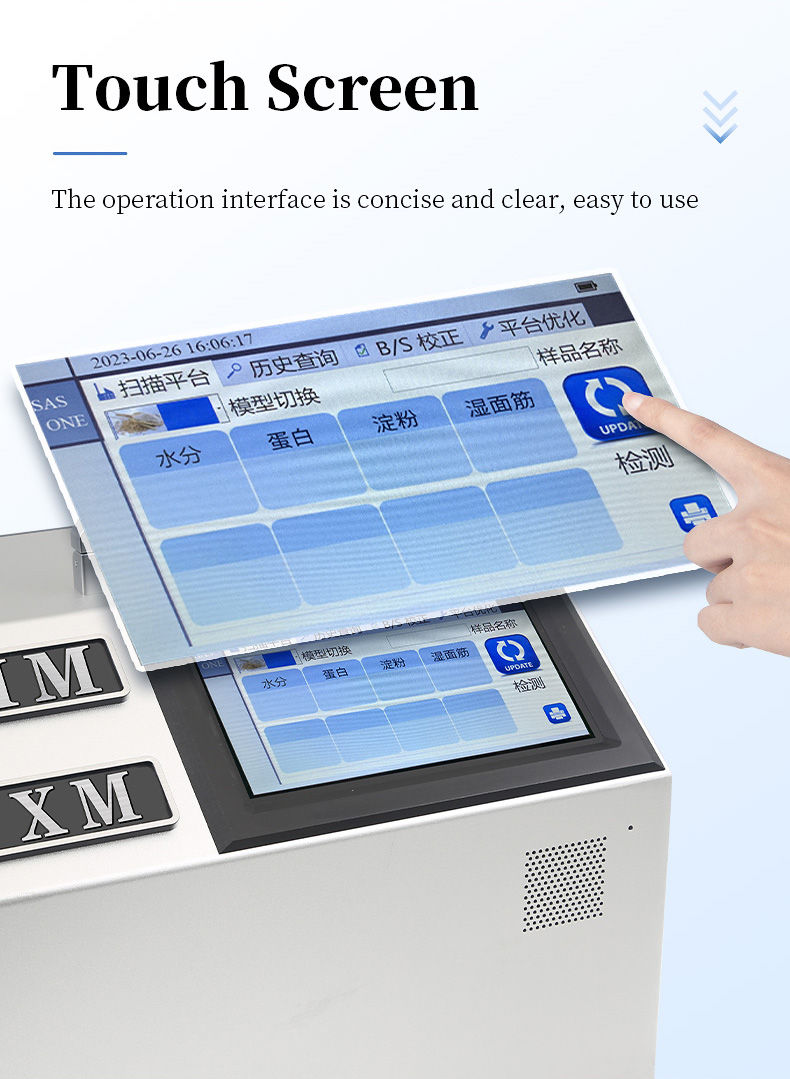

3. The operation interface is simple and clear, easy to use.

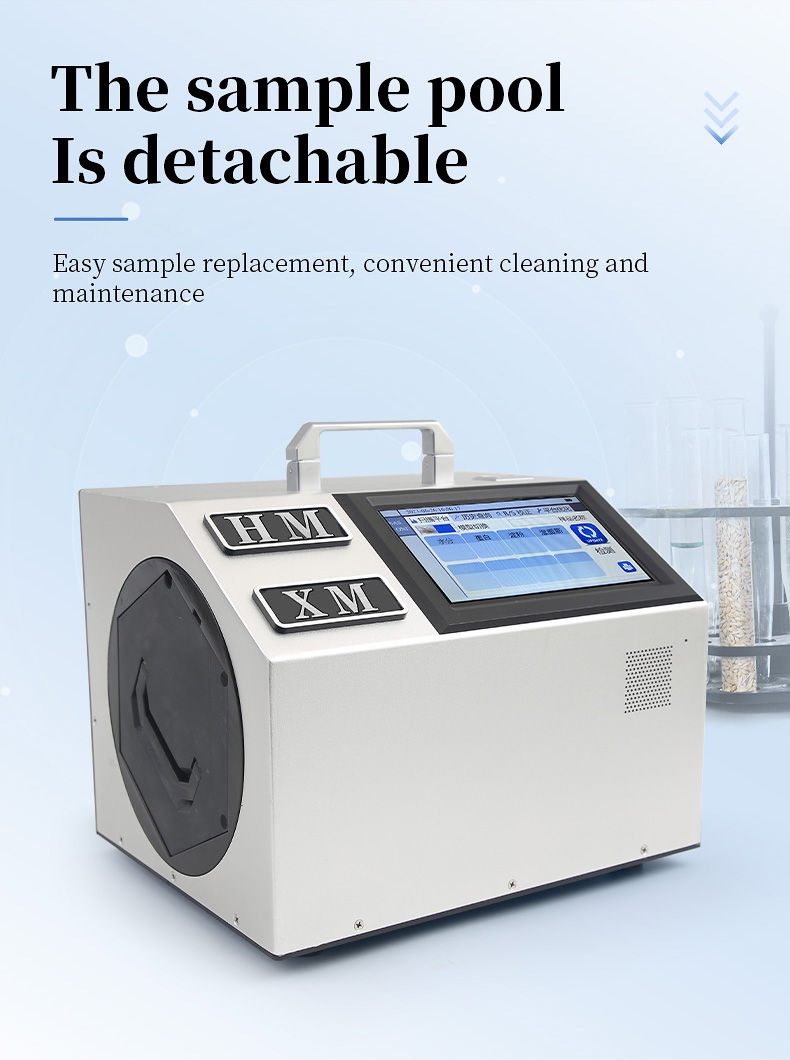

4. The sample pool is detachable, making it easy to replace samples and facilitate cleaning and maintenance.

5. Support remote after-sales maintenance and upgrades

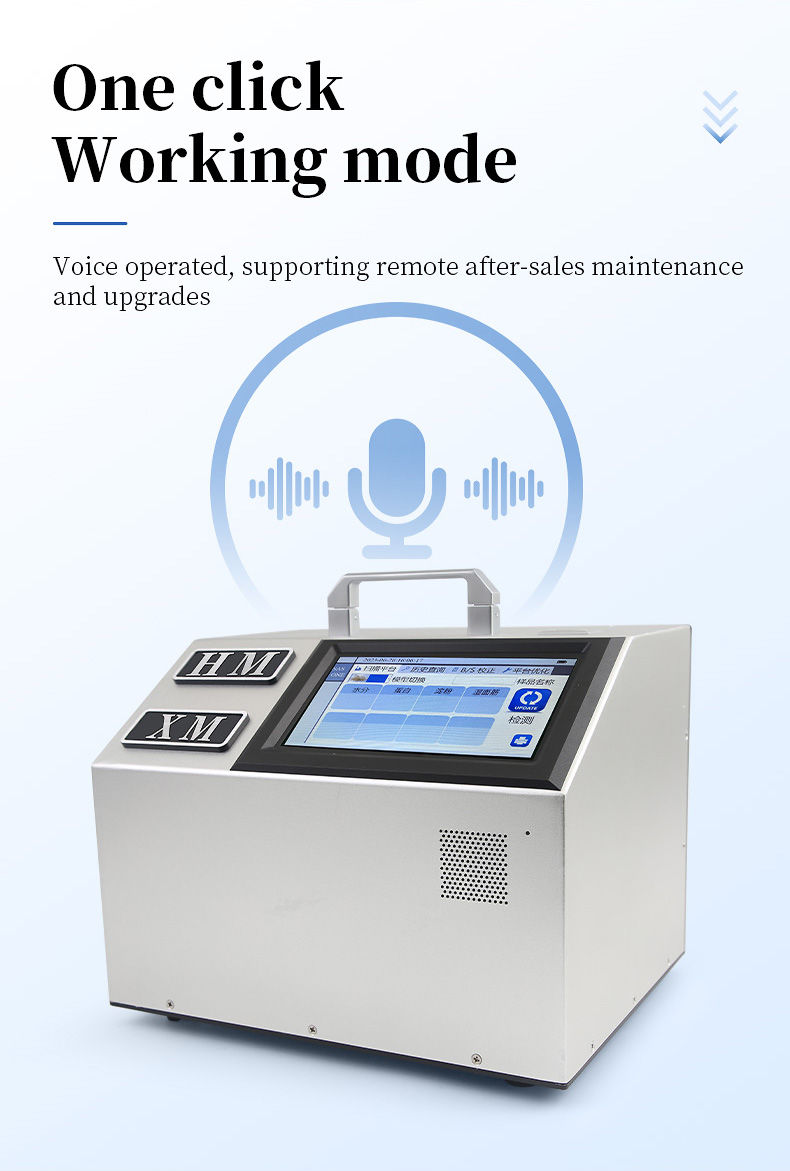

6. Voice operated, one click working mode.

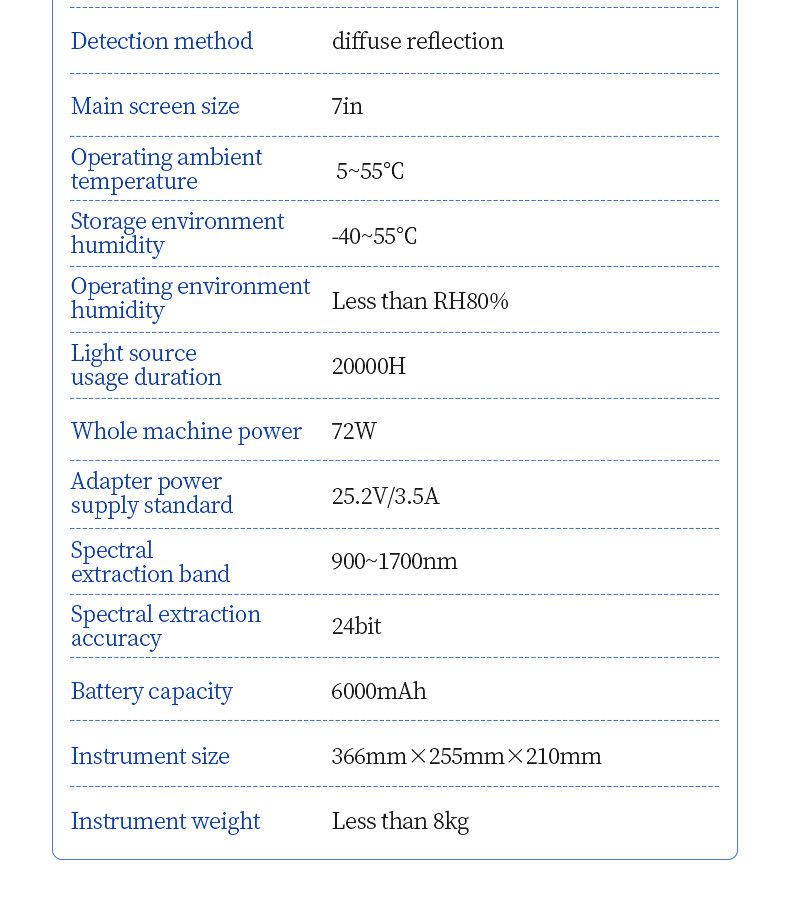

Main technical specifications of the instrument:

1. Application field: Wheat industry

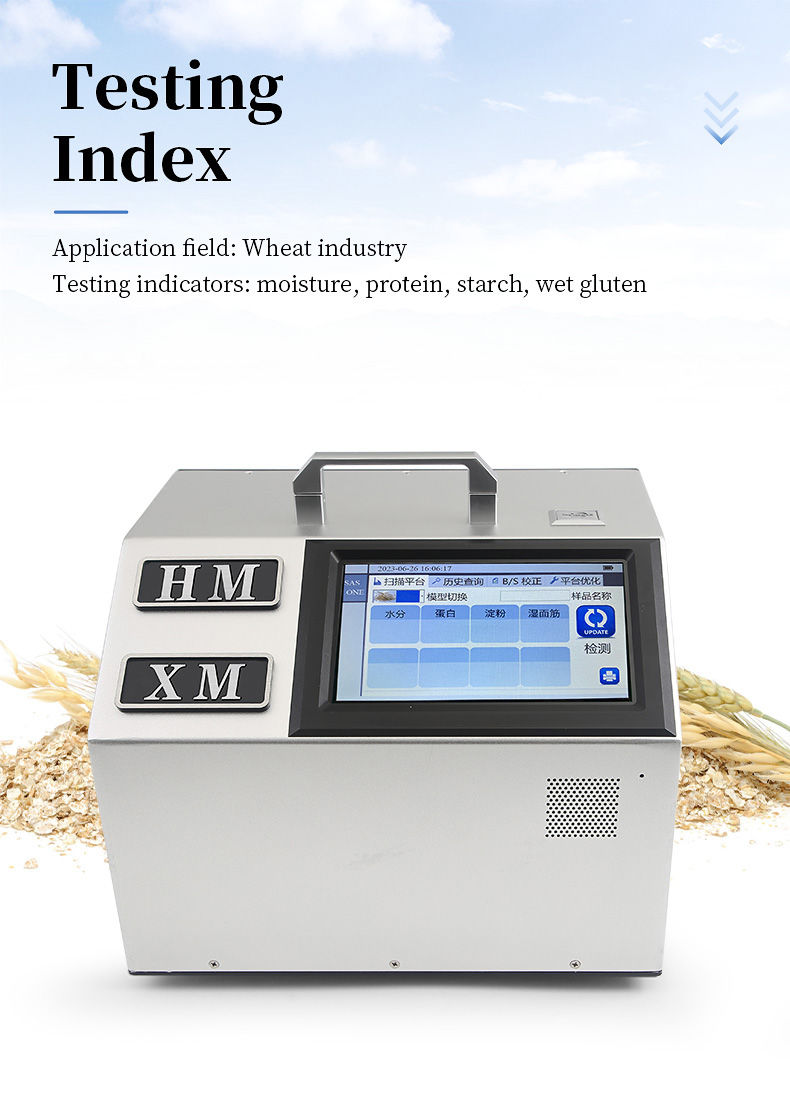

2. Testing indicators: moisture, protein, starch, wet gluten.

3. Application scenarios: Acquisition, warehousing, processing and testing Scenarios: Indoor and vehicle testing

4. Test sample: Wheat

5. Detection method: diffuse reflection

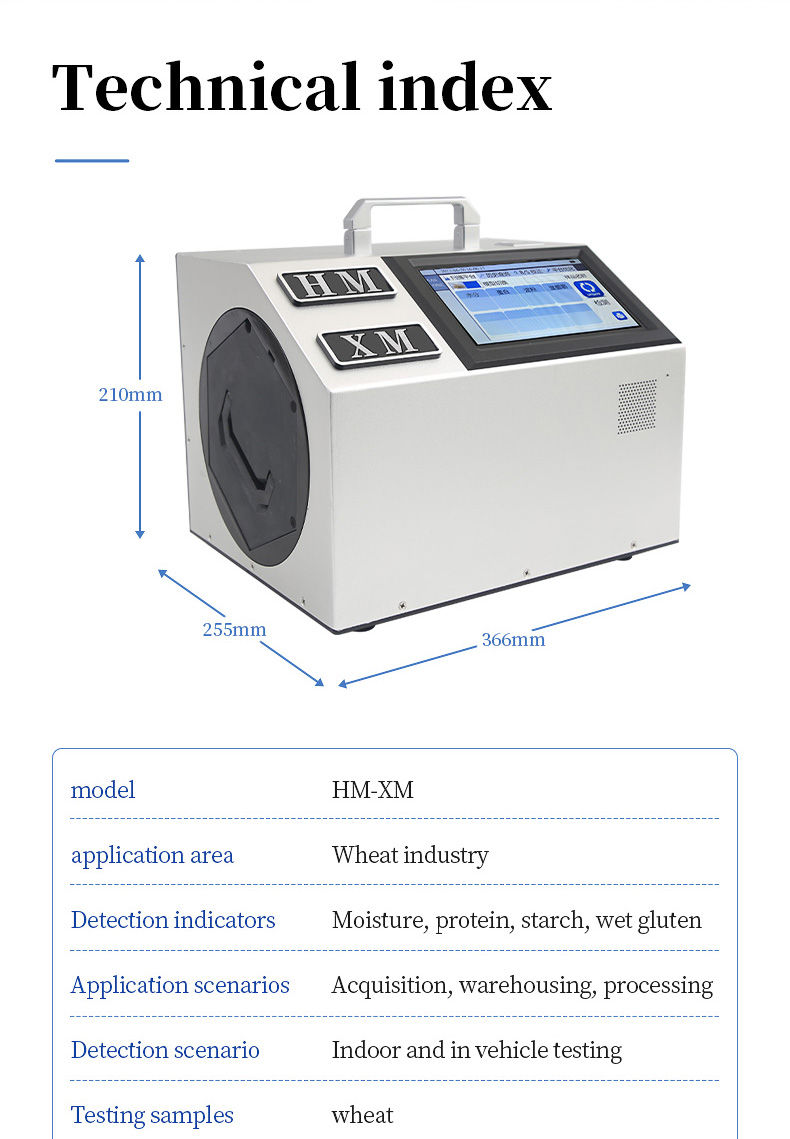

6. Instrument size: 366 * 255 * 210mm

7. Weight: less than 8kg

8. Main screen size: 7 inches

9. Operating environment temperature: 5-55 ℃

10. Storage environment humidity: -40-55 ℃

11. Operating environment humidity: less than RH80%

12. Light source usage duration: 20000H

13. Overall power: 72W

14. Adapter power supply standard: 25.2V/3.5A

15. Spectral extraction band: 900-1700nm

16. Spectral extraction accuracy: 24 bits

17. Battery capacity: 6000mAh
