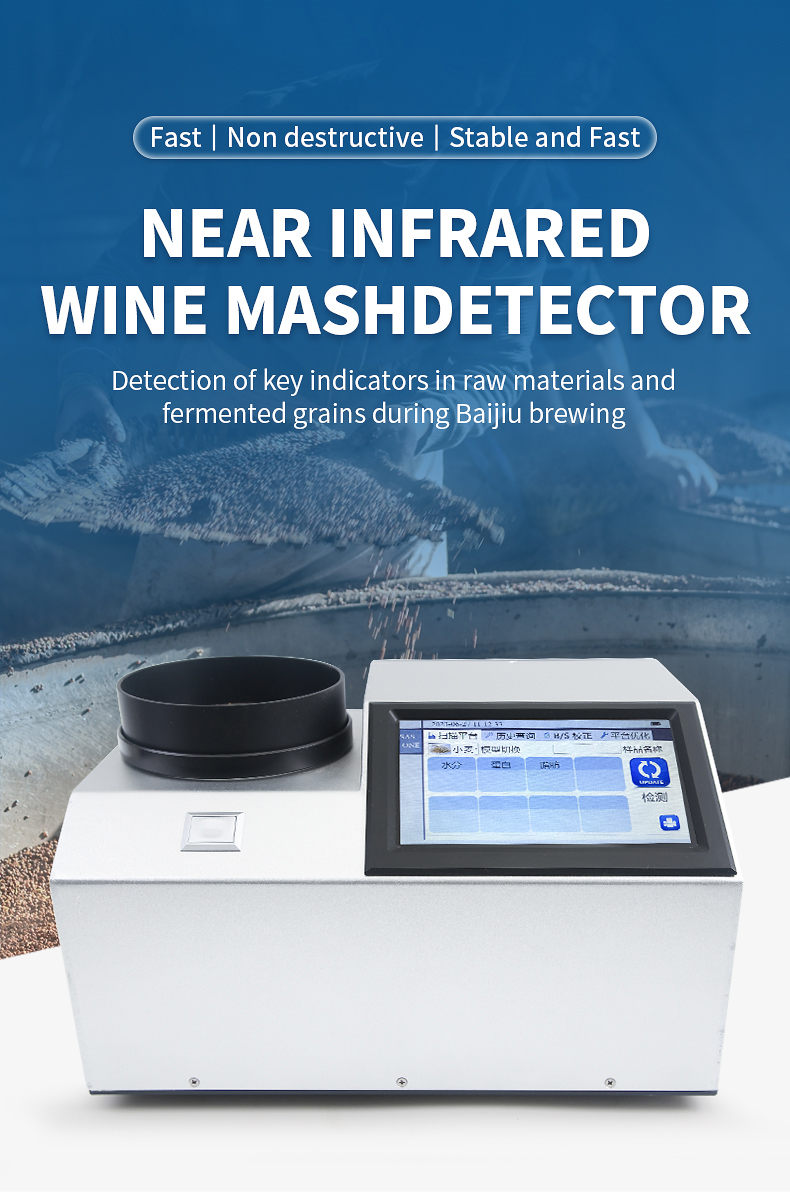

Portable Fermented Grains Detector

Product Introduction:

The portable fermented grains detector can quickly and non-destructively measure various key indicators in raw materials and fermented grains during the brewing process of Baijiu. It supports standalone operation (without a computer) and has a built-in battery suitable for in-situ detection. It can be remotely managed, and the software, models can be calibrated, upgraded, and maintained through an Ethernet port, WIFI connection to a PC or network.

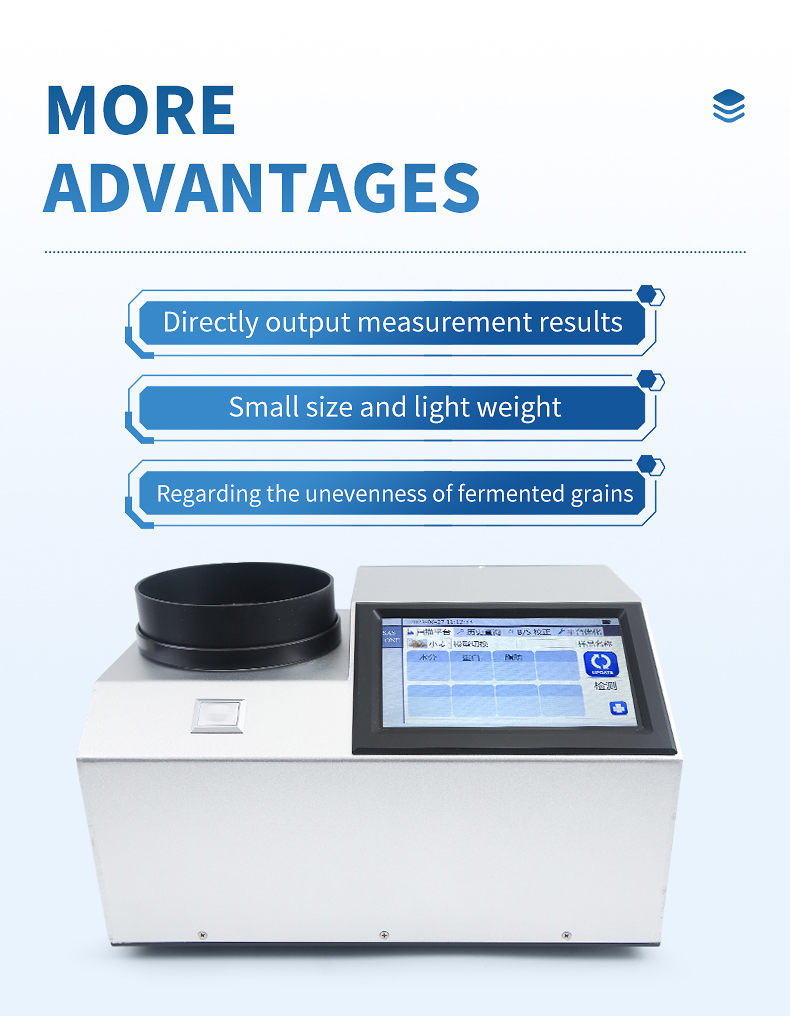

Features:

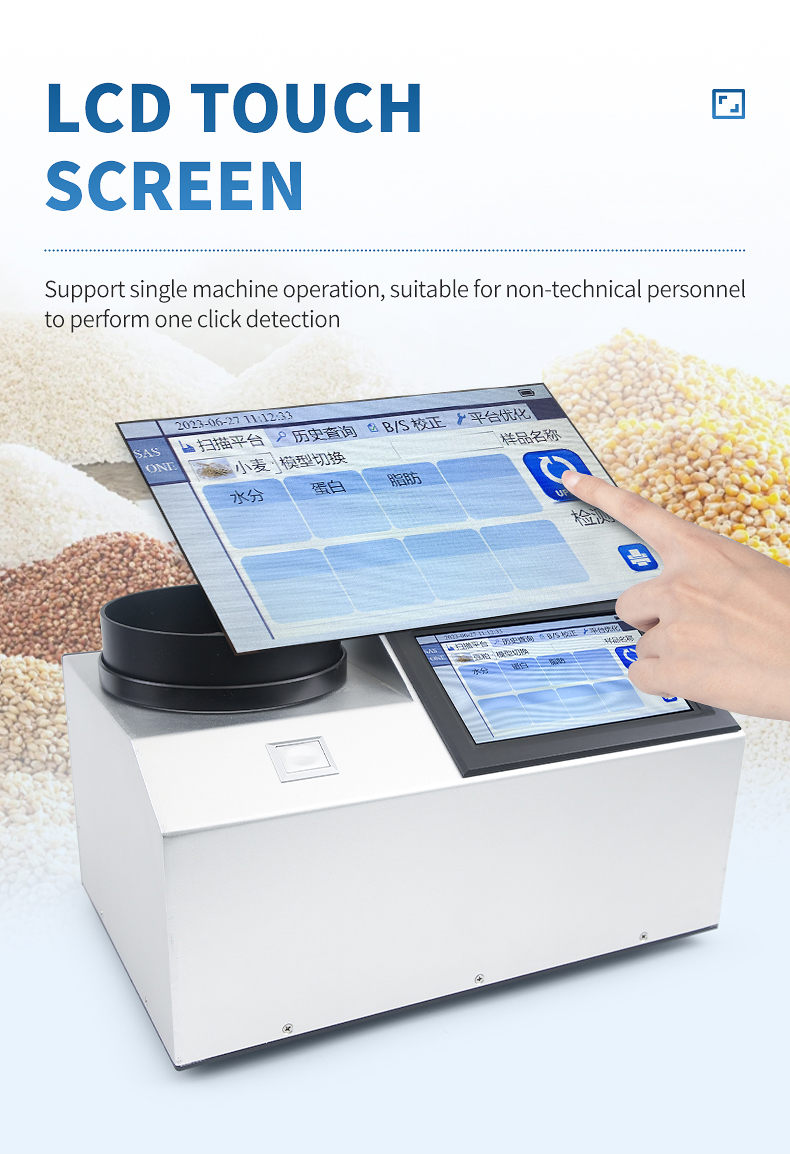

1: Integrated LCD screen:

2: Supports standalone operation, suitable for non-technical personnel to perform one-click detection

3: Directly output the measurement results

4: Addressing the unevenness of fermented grains

5: Features specially designed for a large spot with a diameter of 20mm

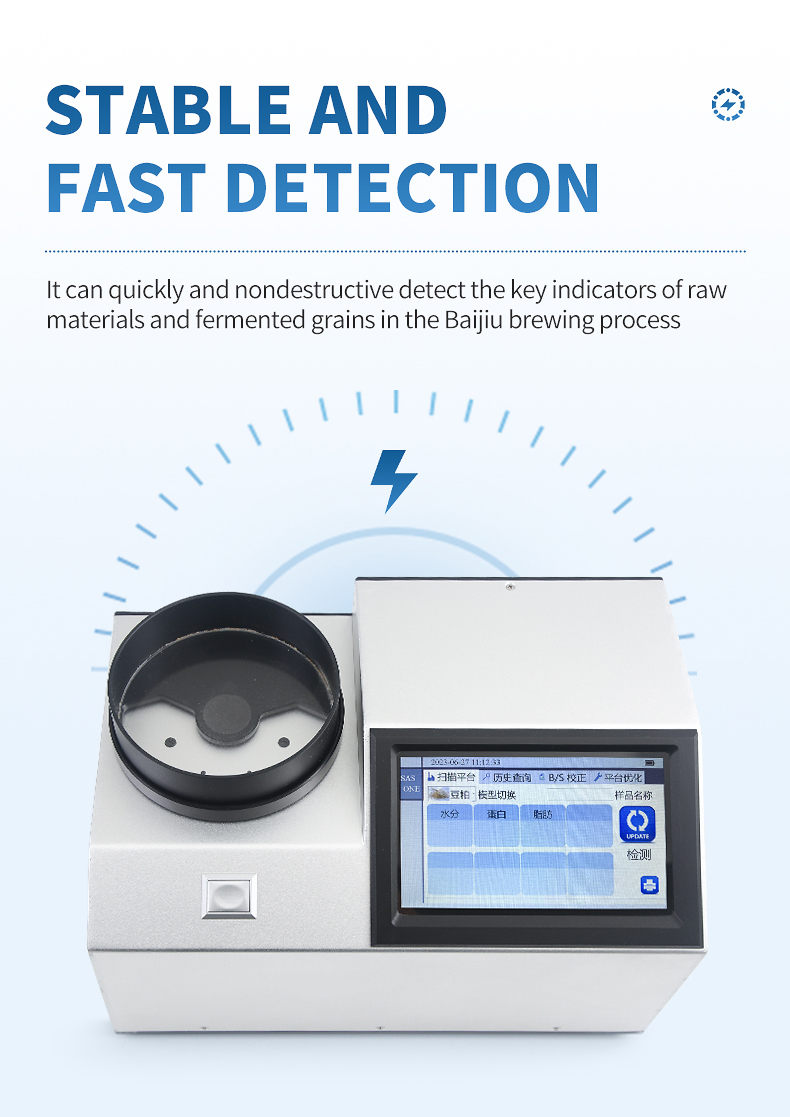

6: Stable and fast detection

7: Remote modeling, maintenance, model upgrading, and instrument calibration are possible

8: Multiple ways to access the network

9: To facilitate direct communication between the quality inspection department and leaders at all levels

10: Obtain the status of the production line

11: Small size, light weight

12: Built-in battery

13: Suitable for on-site inspection in the workshop

Application areas:

Brewing industry

Raw materials for Baijiu: sorghum, wheat, corn, glutinous rice, rice, peas, etc. Measurement indicators: moisture, protein, starch, fat, etc

Baijiu fermentation process: fermented grains, measurement indicators: moisture, acidity, starch, alcohol content, etc.

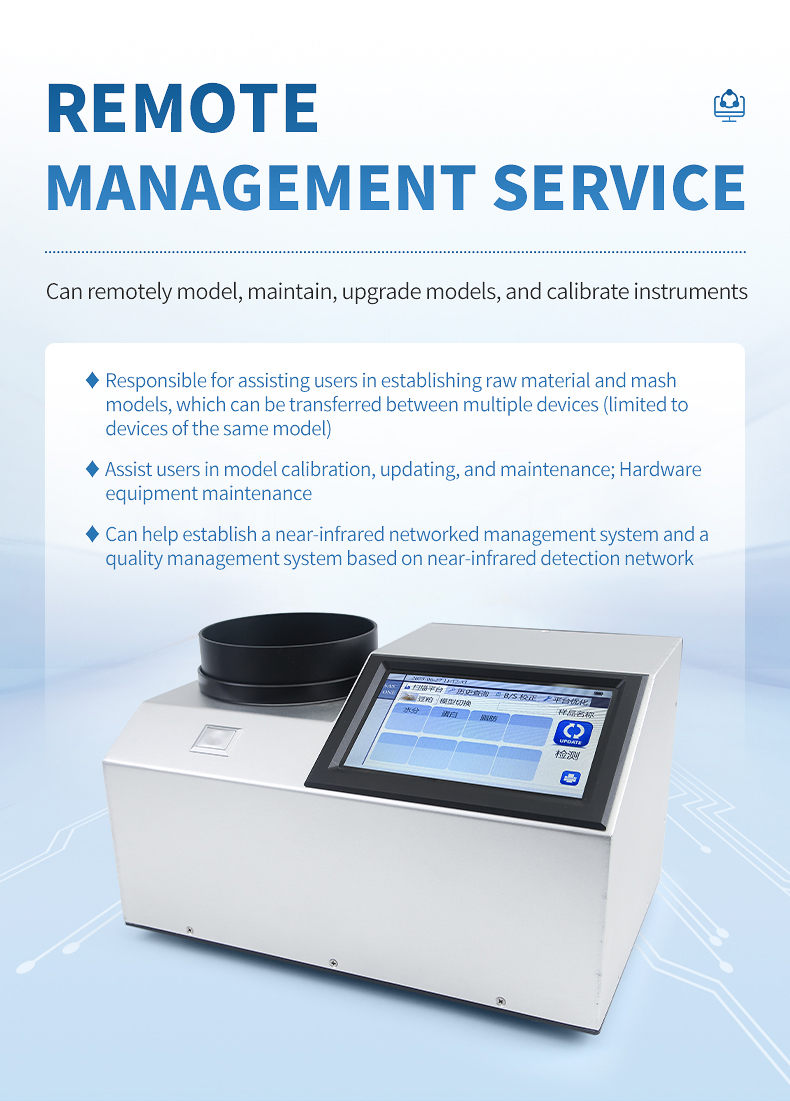

Service:

1. Responsible for assisting users in establishing models for raw and auxiliary materials as well as fermented grains, enabling model transfer across multiple devices (limited to devices of the same model)

2. Assist users in model calibration, updating, and maintenance; hardware equipment maintenance

3. It can assist in establishing a near-infrared networked management system and a quality management system based on near-infrared detection network

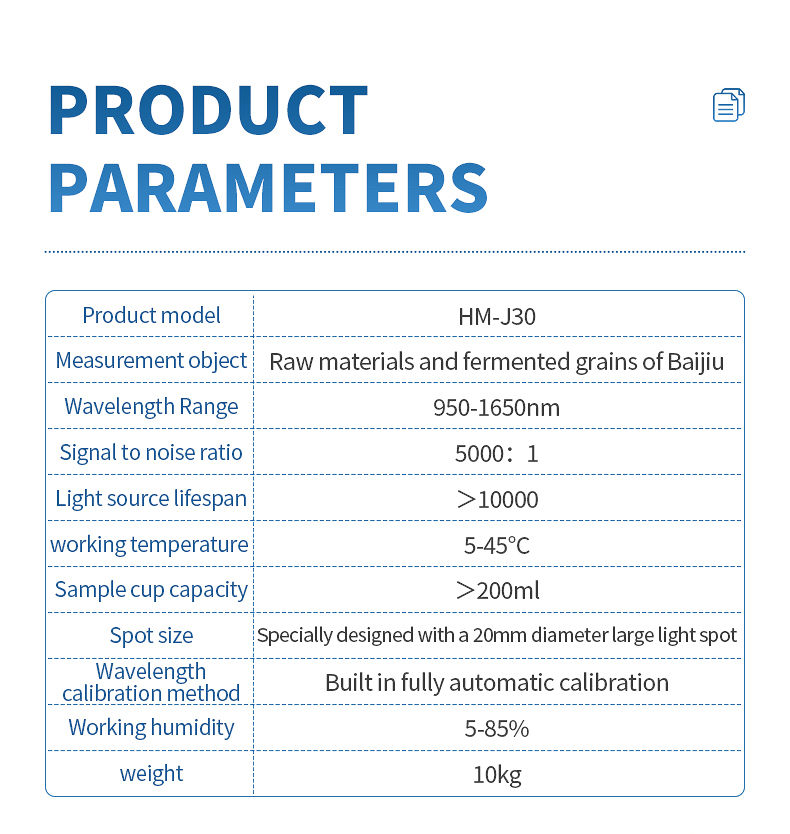

Technical parameters:

1. Measurement objects: raw and auxiliary materials for Baijiu and fermented grains

2. Wavelength range: 950-1650nm

3. Signal-to-noise ratio: 5000:1

4. Light source lifespan: >10,000

5. Operating temperature: 5-45°C

6. Sample cup capacity: > 200ml

7. Spot size: 20mm

8. Wavelength calibration method: built-in fully automatic calibration

9. Operating humidity: 5-85%

10. Weight: 10kg
