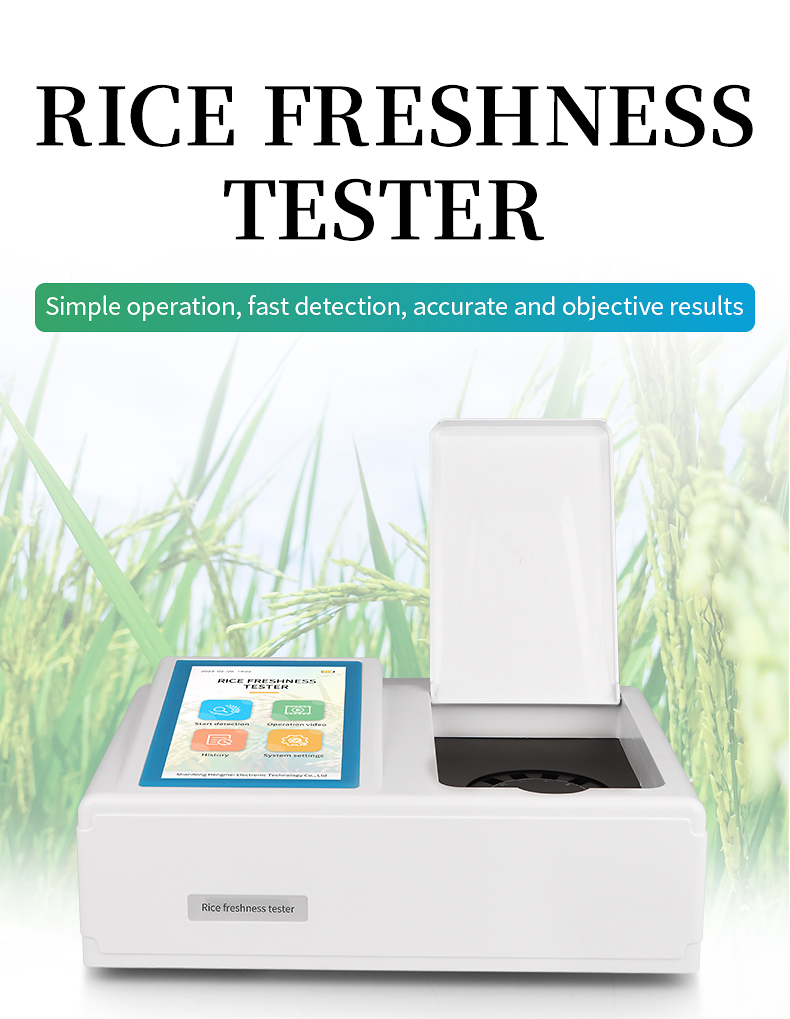

Grain Freshness Tester

Product Introduction:

The grain freshness tester is suitable for the grain industry standard LS/T 6118-2017 "Grain and Oil Inspection - Determination and Discrimination of Rice Freshness", and is a specialized instrument for detecting the freshness of rice. Its working principle is based on the amount of aldehydes and ketones produced during the aging process of rice samples. The tested rice is ground into rice, and the rice sample is added with a special reagent - freshness tester. After shaking and mixing, it is centrifuged. The color change of the mixed solution after the reaction between the sample and freshness tester is detected by the instrument, and the freshness value of the sample is displayed to determine the freshness of the rice sample. This instrument is mainly used in grain depots, rice processing enterprises, grain quality inspection centers, etc. to evaluate the freshness of rice.

The main features of this instrument are: ① simple instrument operation; ② Testing is convenient and fast; ③ The test results are accurate and objective.

Instrument advantages:

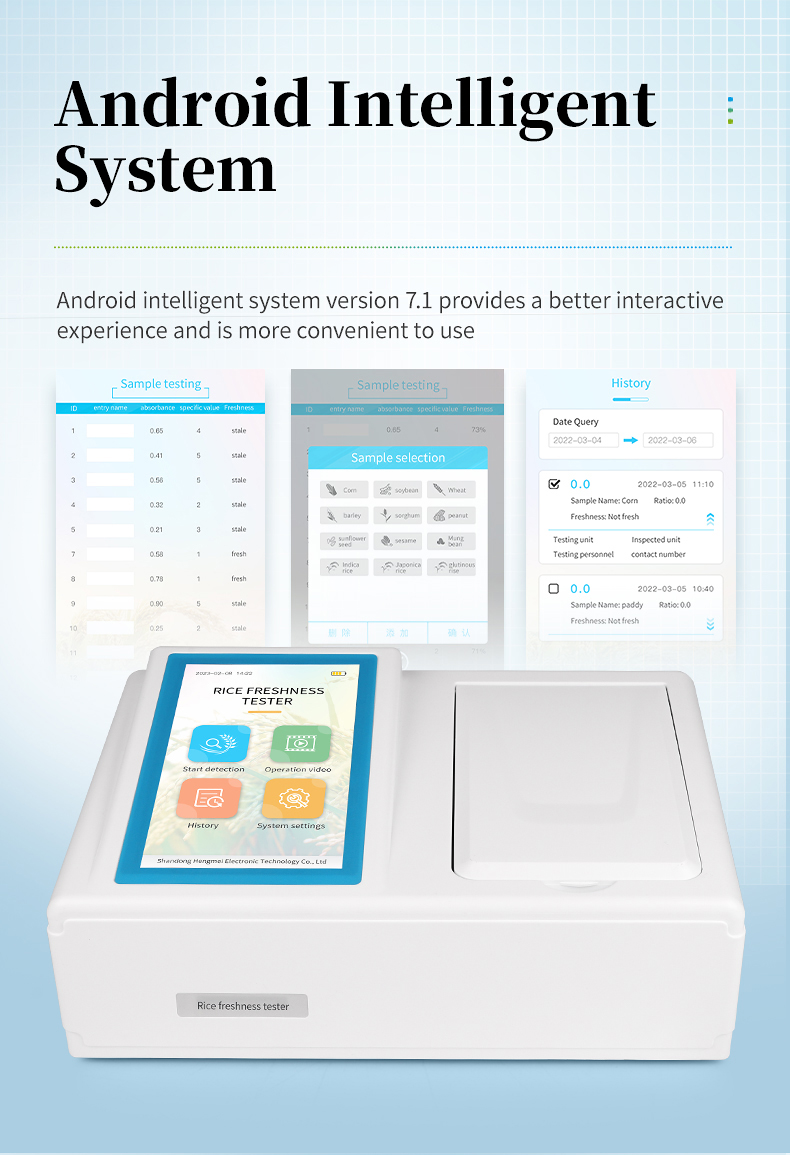

1. The Android intelligent system version 7.1 provides a better interactive experience and is more convenient to use.

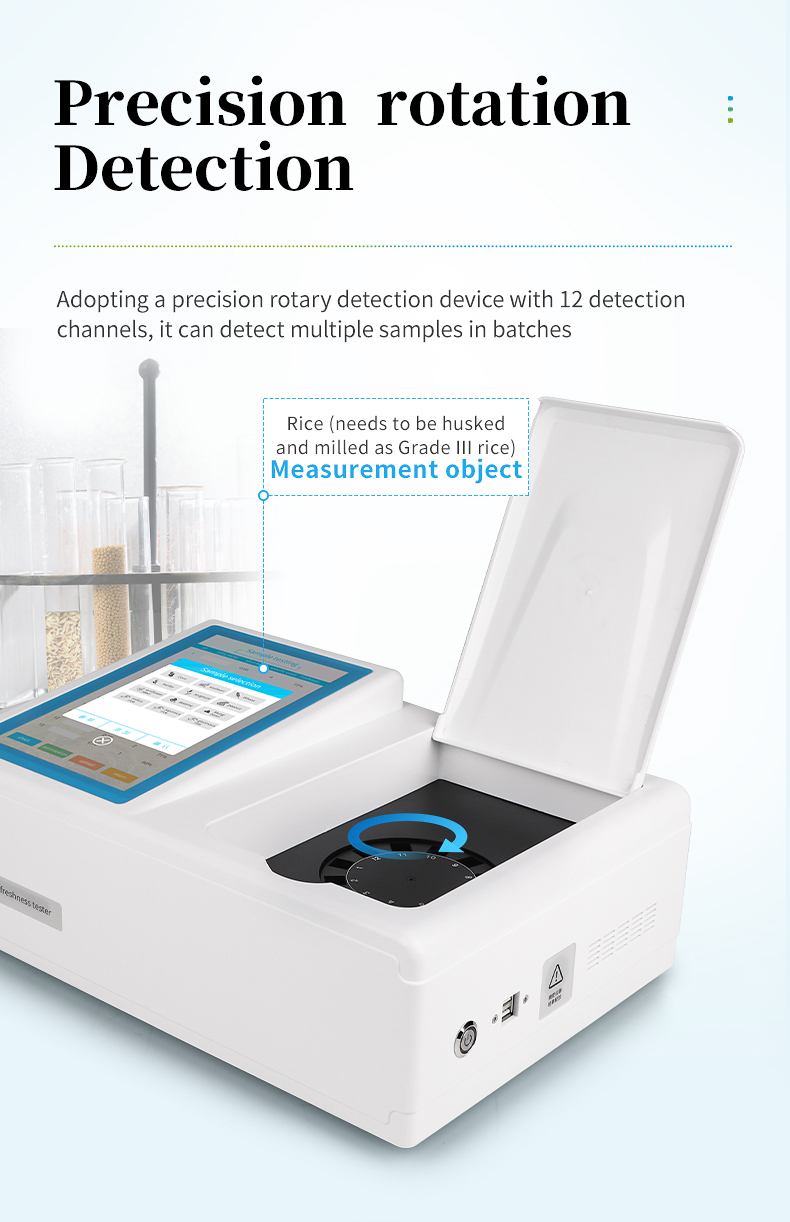

2. Adopting a precision rotating detection device with 12 detection channels, it can detect multiple samples in batches.

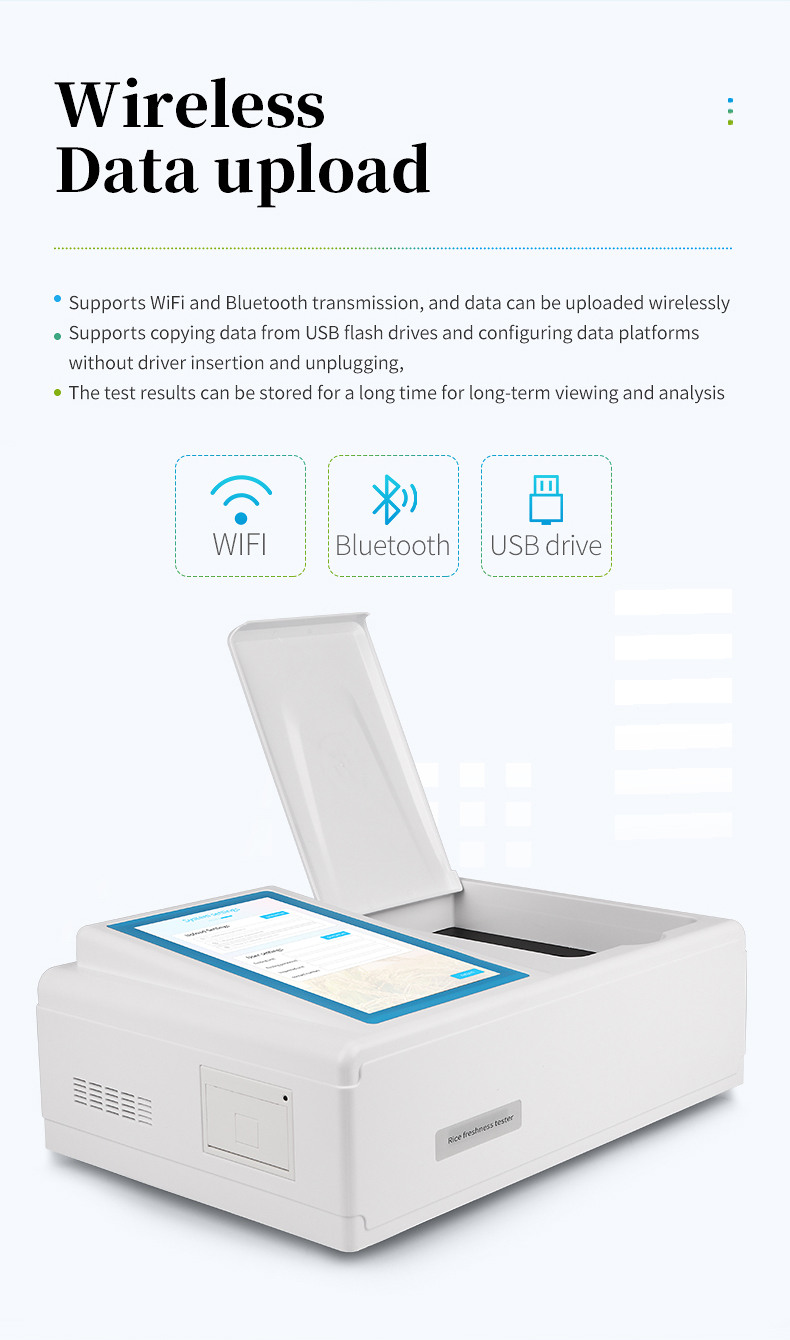

3. Supports WiFi and Bluetooth transmission, data can be uploaded wirelessly; Supports copying data from USB flash drives without driver insertion and removal.

4. Configure a data platform that allows for long-term storage of detection results for both short-term and long-term viewing and analysis, assisting in management.

Instrument parameters:

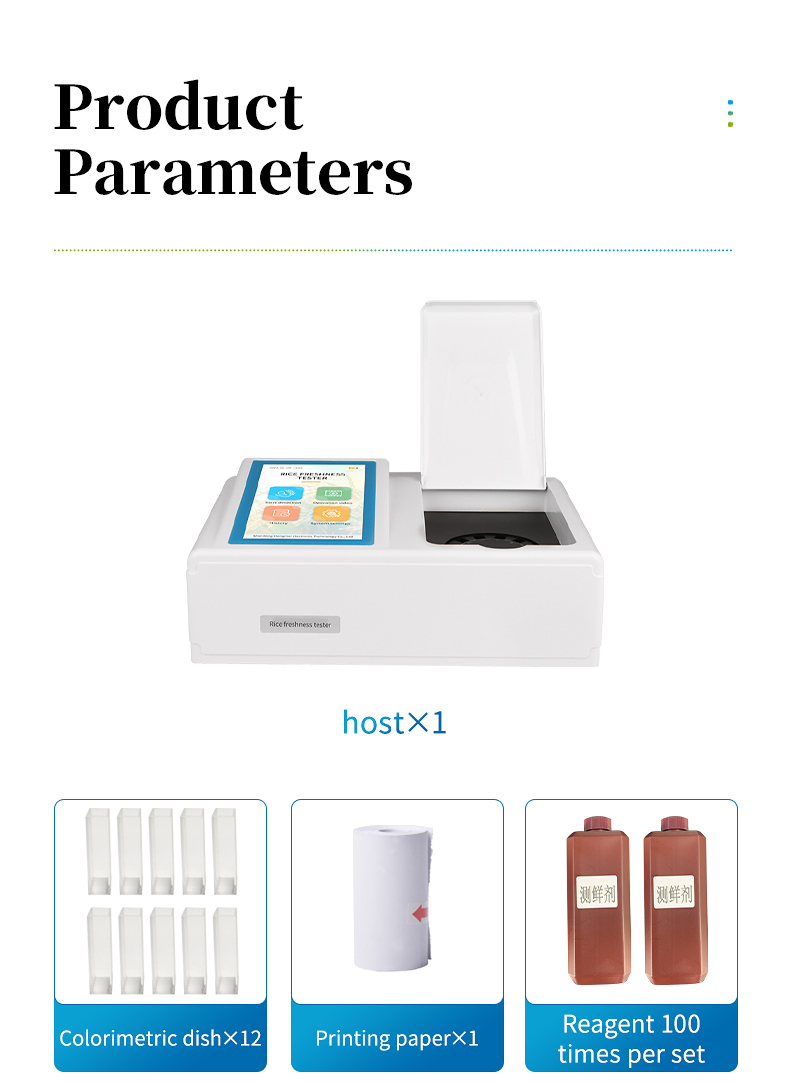

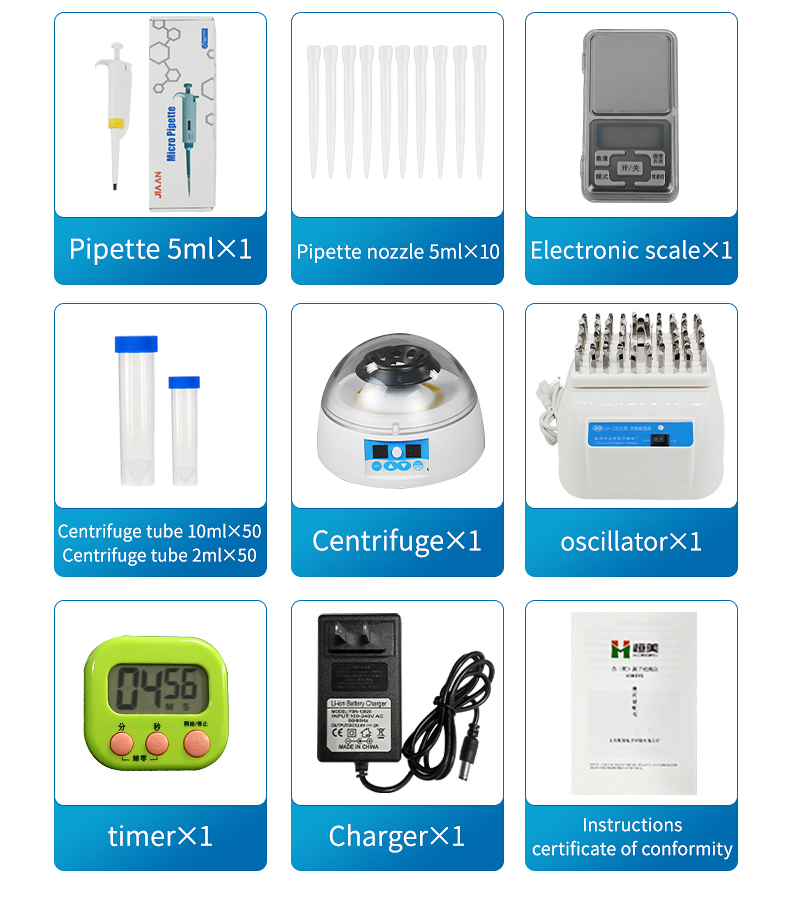

1. Product composition: host, sample pre-processing device, and freshness testing agent;

2. Measurement object: Rice (third grade rice that needs to be hulled and milled);

3. Testing item: Can detect the FD value (freshness) of rice;

4. Sample size for testing: 0.5-2g;

5. Result description: Freshness value;

6. Measurement range: 0-100 points;

7. Measurement time: ≥ 1min for 12 samples;

8. FD value repeatability: ≤± 2 points

9. Working temperature: 18-25 ℃;

10. Working humidity: below 80% (no condensation).

11. Equipped with a new thermal printer, the test results can be automatically printed;

12. The data results can be automatically saved and connected to the upper computer for uploading to the computer;

13. Environmentally friendly, the tested waste liquid can be directly discharged into the sewer.

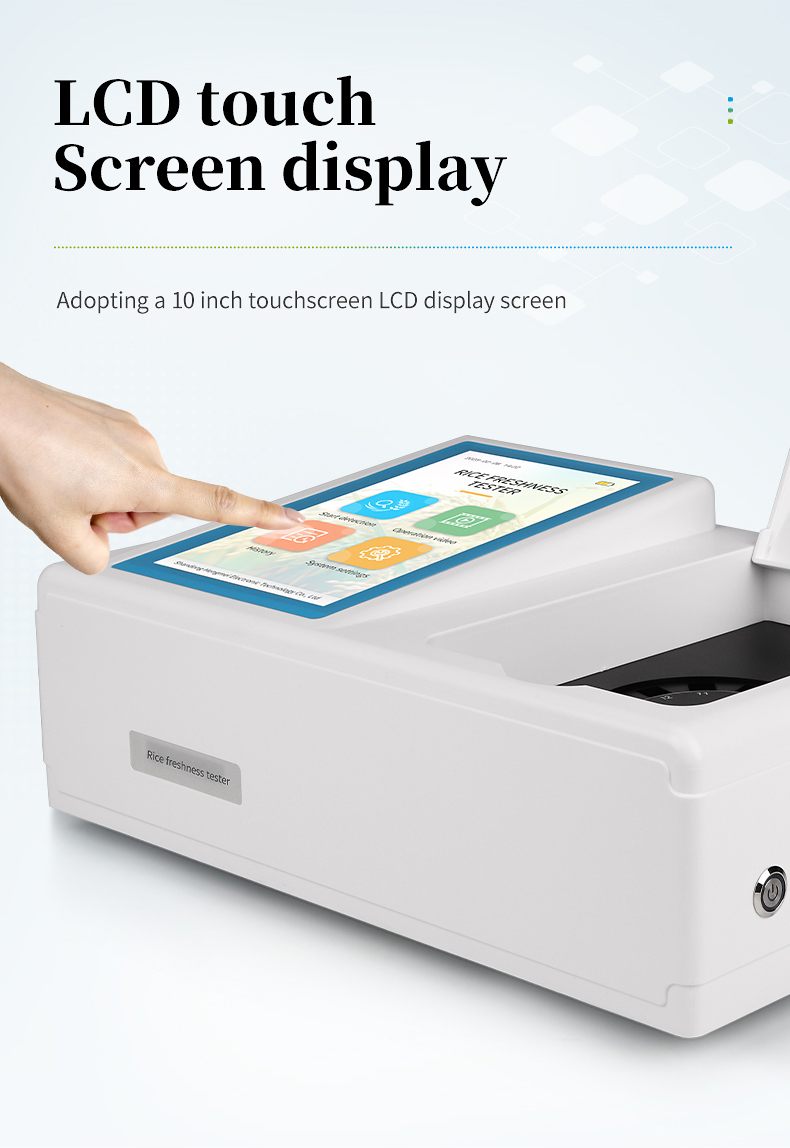

14. Adopting a 10 inch touch sensitive LCD display screen;

15. Power supply: AC 200V~240V, 50/60Hz;
