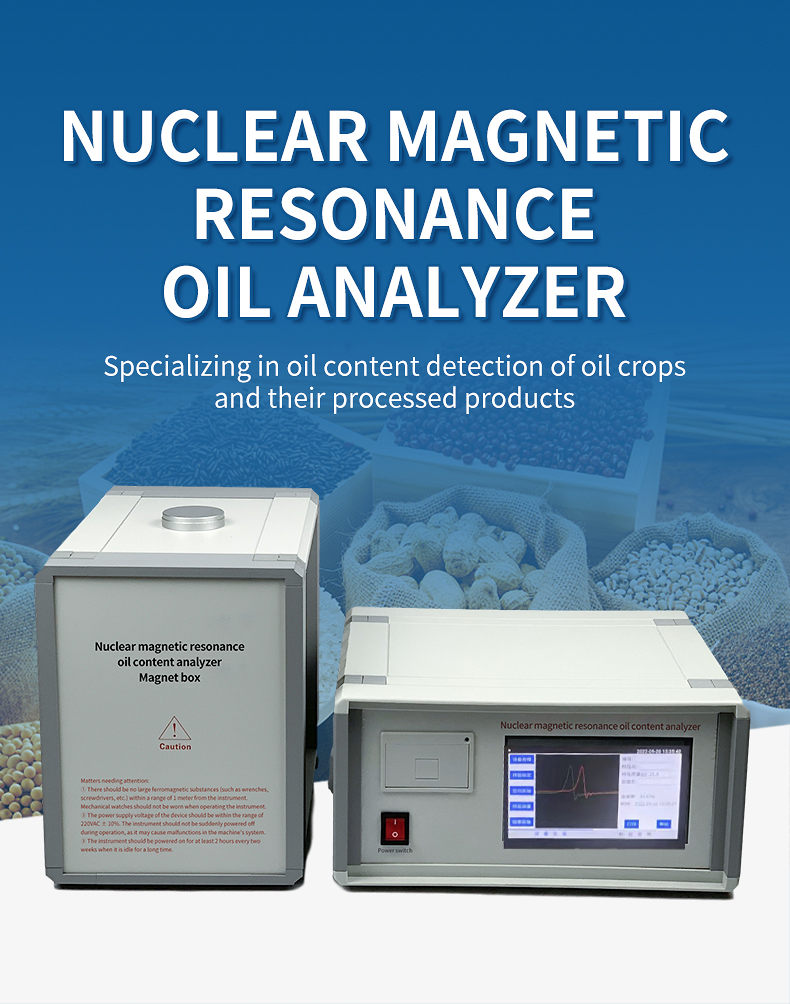

Nuclear Magnetic Resonance Oil Tester

Instrument Introduction:

The nuclear magnetic resonance oil meter is a high-tech product specifically designed for detecting the oil content in oil-bearing crops and their processed products. Utilizing nuclear magnetic resonance technology, based on an embedded development platform and digital signal processing technology, this instrument enables rapid determination of the oil content in oil-bearing crop seeds such as soybeans, rapeseed, sesame, corn, cottonseed, sunflower seed, peanut, wheat, tung seed, rice bran, tea seed, as well as their cakes and meals. It is a novel product in the field of non-destructive testing. This instrument features simple and convenient operation, high testing accuracy, and fast testing speed. Compared to similar domestic instruments, it adopts the proprietary "frequency self-locking technology", eliminating the need for manual adjustment and reducing human error, thereby greatly improving measurement accuracy and stability.

Instrument Features:

1. The nuclear magnetic resonance oil tester comes with a 7-inch true color LCD screen, featuring a simple operation interface, mouse + keyboard, and consistent operation mode with a computer

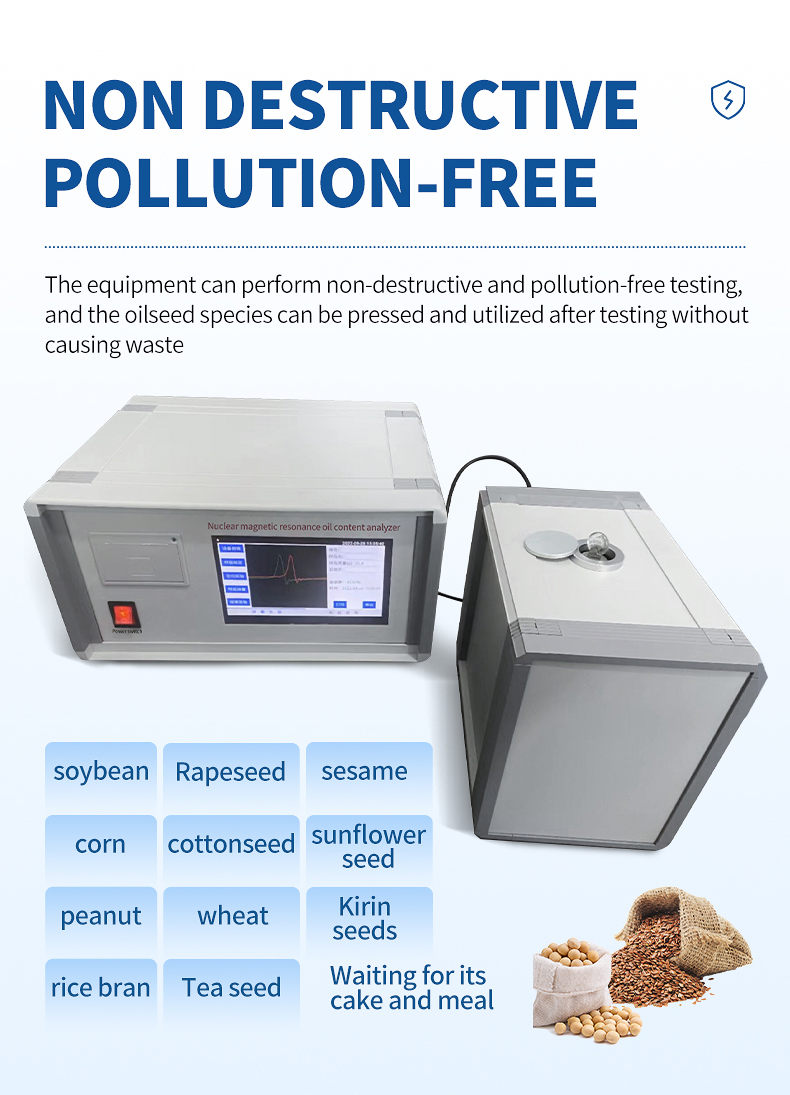

2. The equipment can conduct non-destructive and non-polluting testing, and the oilseed species can be further pressed and utilized after testing, without causing waste

3. With a stability of ±0.1%, it boasts high measurement accuracy and excellent stability. Utilizing intelligent classification detection methods for various species, each measurement takes only 0.5 minutes

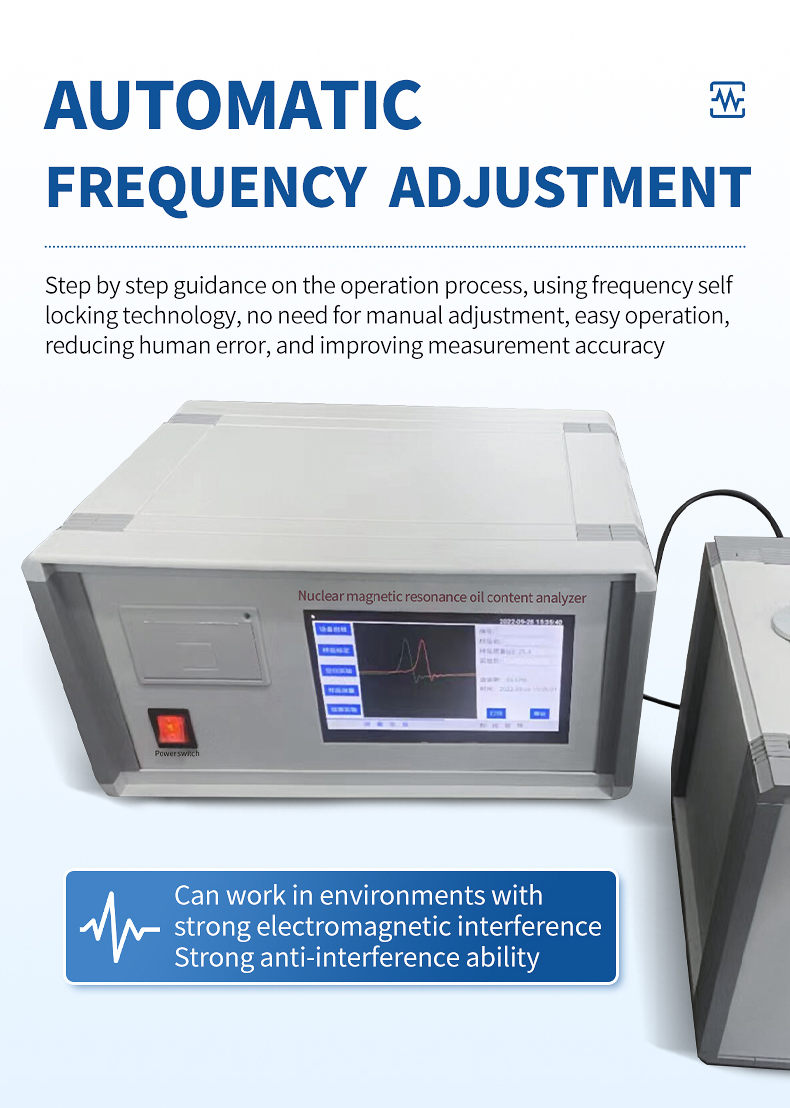

4. The software automatically adjusts the frequency, gradually prompts and guides the operation process, and adopts frequency self-locking technology, eliminating the need for manual adjustment. It is easy to operate, reduces human error, and improves measurement accuracy

5. It can operate in environments with strong electromagnetic interference, exhibiting strong anti-interference capability

6. Users can configure the mode themselves, making the printed content more flexible and rich. It can not only be saved directly on the machine, but also saved via a USB flash drive and opened and processed on a computer

7. Download the upgrade software from the internet to a USB flash drive, insert it into the USB port of the device, and the upgrade will be automatically completed

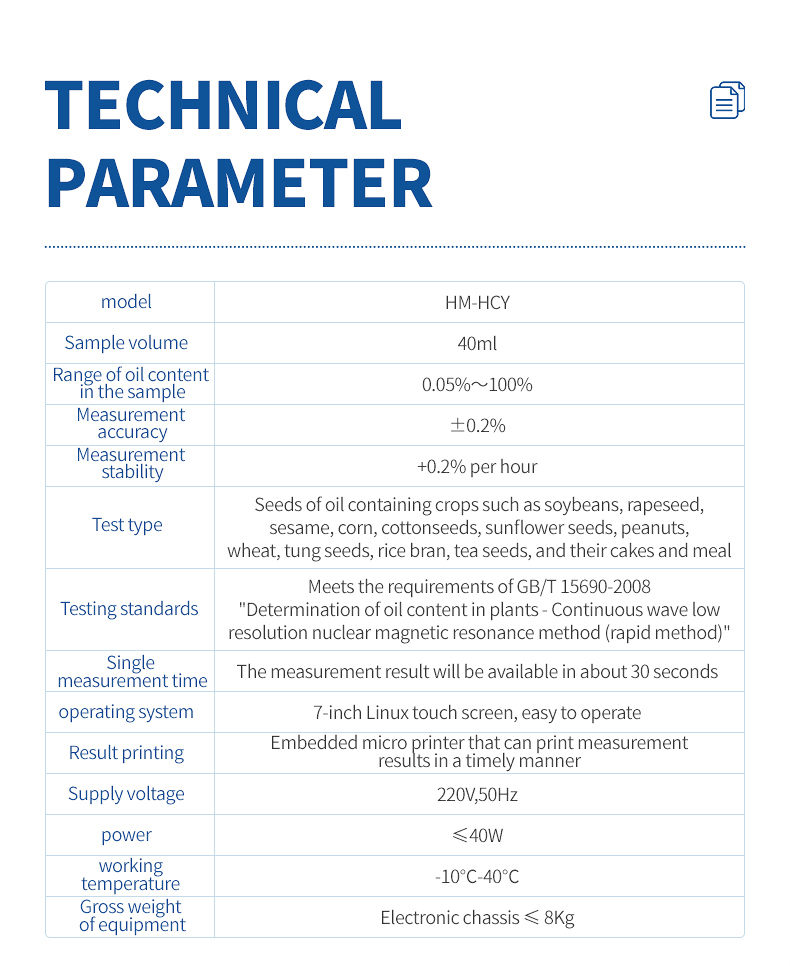

Technical Parameter:

1. Sample volume: 40ml;

2. Range of oil content in sample: 0.05% to 100%;

3. Measurement accuracy: ±0.2%;

4. Measurement stability: +0.2% per hour

5. Single measurement time: Measurement results are obtained in approximately 30 seconds

6. Power supply voltage: 220V, 50Hz;

7. Power: ≤40W;

8. Operating temperature: -10℃-40℃;

9. Equipment gross weight: Electronic chassis ≤ 8Kg

10. Test types: seeds of oil-bearing crops such as soybeans, rapeseed, sesame, corn, cottonseed, sunflower seed, peanut, wheat, tung seed, rice bran, tea seed, etc., as well as their cakes and meals;

11. Meet the requirements of GB/T 15690-2008, "Plant Oil Content - Determination of Oil Content - Continuous Wave Low-Resolution Nuclear Magnetic Resonance Method (Rapid Method)";

12. Operating system: 7-inch Linux touch screen, easy to operate;

13. Result printing: An embedded micro printer that can promptly print out measurement results.
