Seed Germination Box

Introduction:

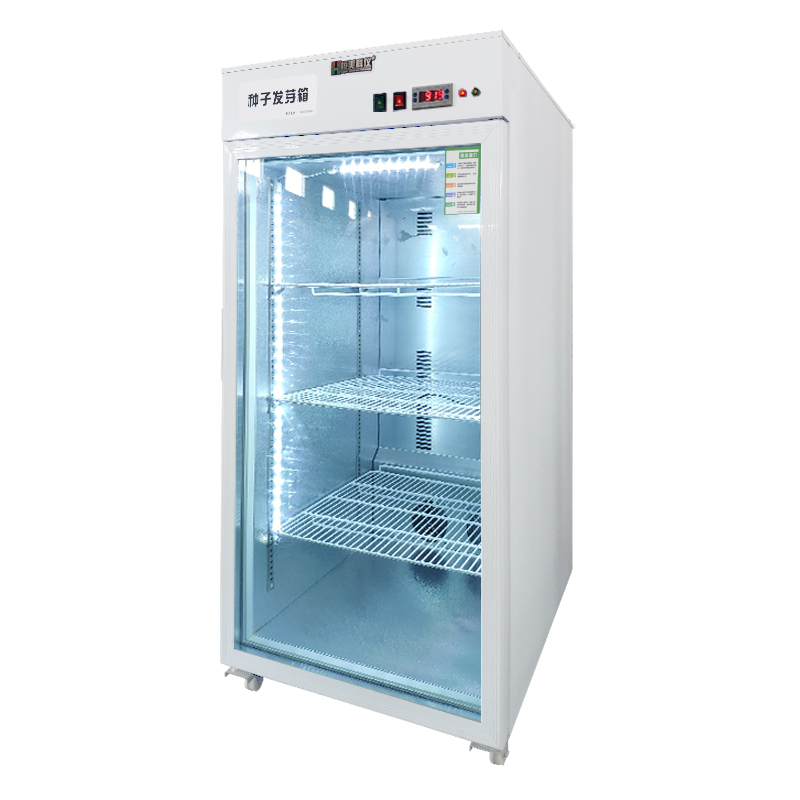

1. The HM series seed germination box is a seed germination testing equipment designed specifically for seed companies (stores). Suitable for plant germination, seedling cultivation, and microbial cultivation, it is also an important experimental equipment for biology, agriculture, forestry, animal husbandry, scientific research units, production units, or departmental laboratories. It has two major functions: automatic control of lighting, automatic heating and constant temperature. Its simple structure, beautiful appearance, reliable operation, and low price make it an ideal popular product.

2. This box can use different seeds with constant temperature and rapid germination in different regions and seasons. Due to the effect of constant temperature, the chemical substances such as proteases in the seeds are quickly decomposed and reacted, avoiding energy loss caused by temperature difference germination. This makes the seeds more resistant to diseases after germination, improves the immune ability of seedlings, and shortens the germination time of seeds. The sprouts produced by this device have good quality and high survival rate.

System control:

The temperature controller used in this product. The product has small size, light weight, beautiful appearance, good reliability, strong anti vibration and anti-interference performance, and instruments equipped with thermocouples have cold end automatic compensation function. It can achieve temperature measurement and automatic control.

Attention:

1. Place it in a dry and ventilated place.

2. There are no debris or chemicals piled up around.

3. The socket has a capacity greater than 10 amperes and should have a reliable grounding wire.

4. If there is water accumulation inside the box, the power must be cut off first, and then wiped dry with a towel.

Main technical parameters:

1. Single door left opening type

2. Rated capacity 330L

3. Temperature control range: Room temperature~50 ℃, unidirectional heating temperature control type

4. Temperature display mode: digital display

5. Internal dimensions: 545 * 610 * 975mm (length x width x height)

6. Dimensions: 635 * 745 * 1270mm (length x width x height)

7. Working environment: Temperature range of -10 ℃ to 35 ℃. Humidity below 90% RH, non corrosive gas environment

8. Working power supply: AC 220V ± 10%, 50Hz; power consumption: less than 4VA;

9. Power: 400W, daily power consumption 0.3 ° C
