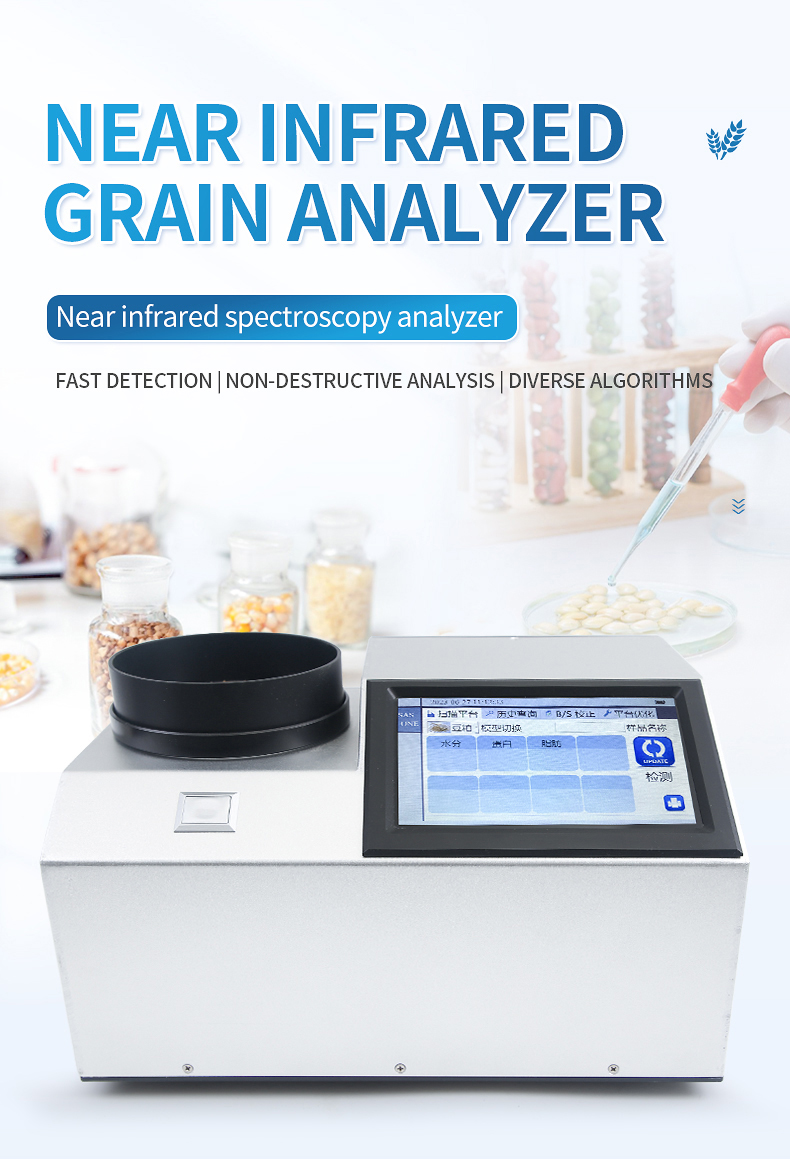

Near infrared grain quality analyzer

Product Introduction

The near-infrared spectrometer can quickly analyze the types and contents of components (such as protein, moisture, oil, fiber, ash, etc.) in different substances based on the spectrum generated by near-infrared light irradiation on the sample, and can add models according to customer needs.

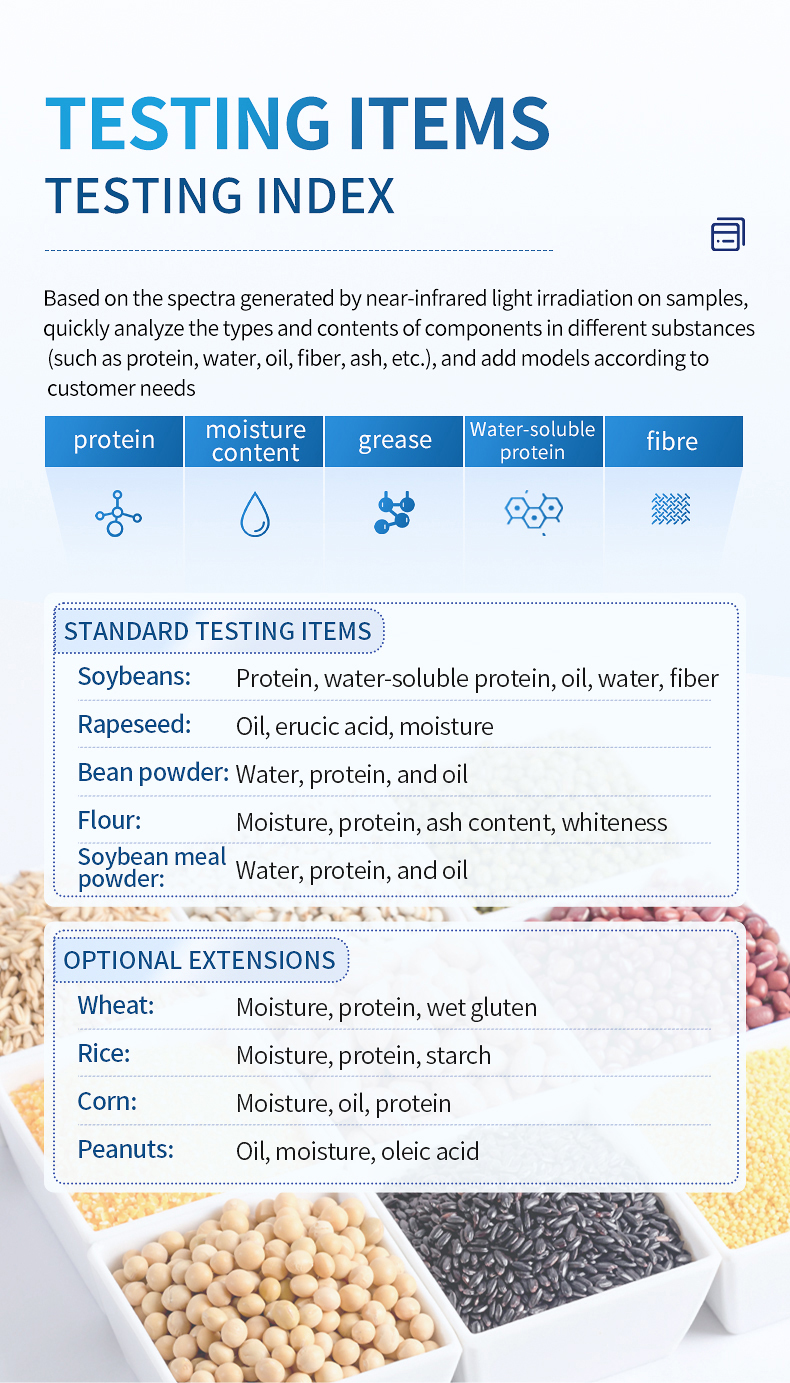

Standard testing items:

Soybeans: protein, water-soluble protein, oil, moisture, fiber

Rapeseed: oil, erucic acid, moisture

Bean flour: moisture, protein, oil and fat

Flour: moisture, protein, ash content, whiteness

Soybean meal powder: moisture, protein, oil and fat

Optional extensions:

Wheat: moisture, protein, wet gluten

Rice: moisture, protein, starch

Corn: moisture, oil, protein

Peanuts: oil, moisture, oleic acid

Product Features

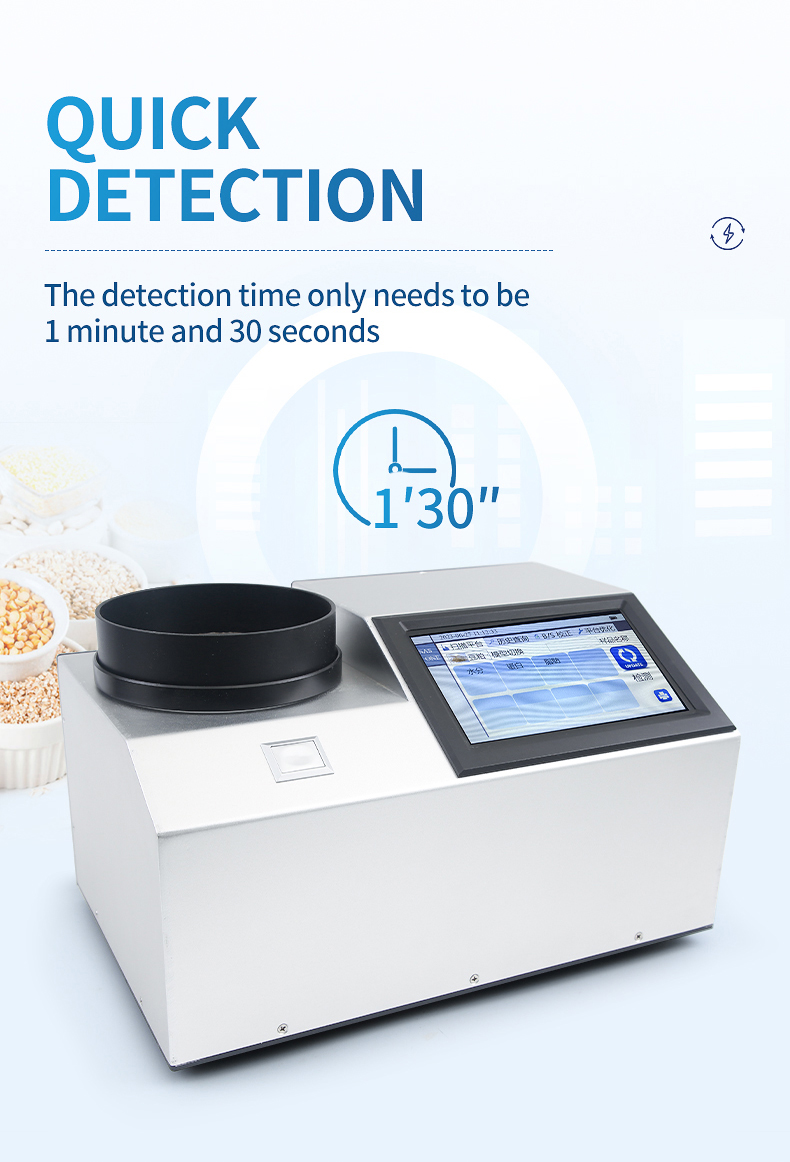

1. Quick: detection time only takes 1 minute

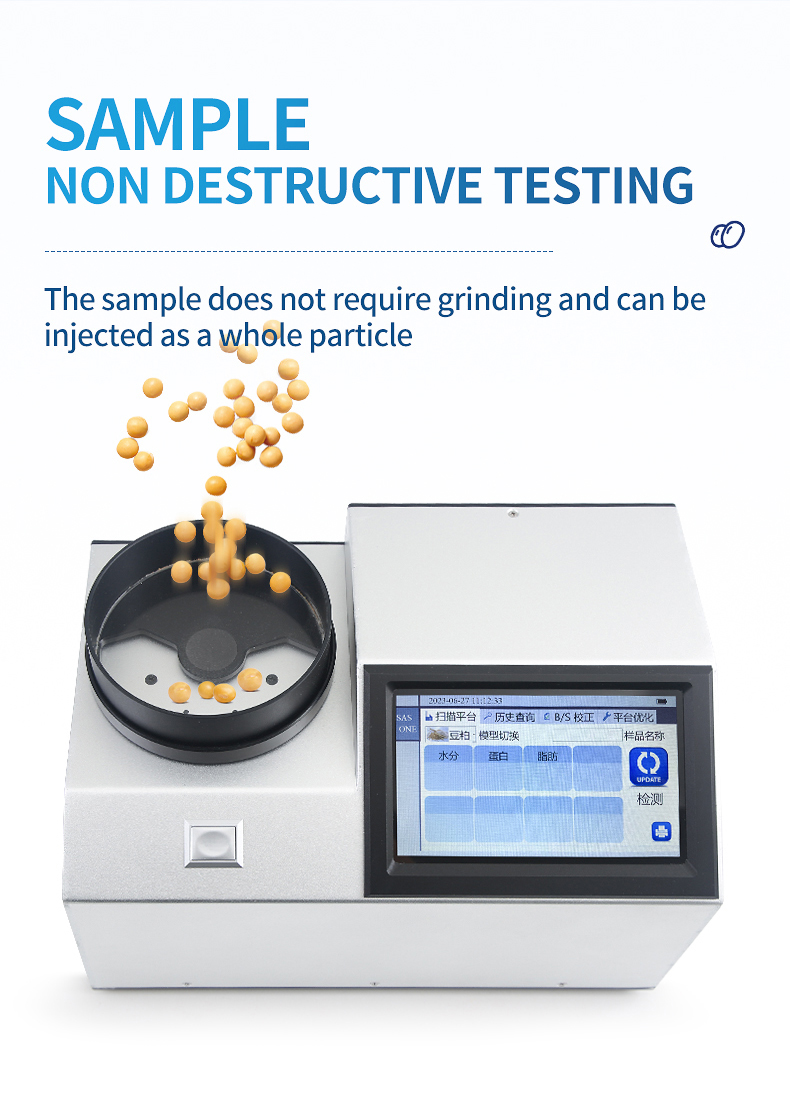

2. Non destructive: The sample does not require grinding and can be injected as a whole particle

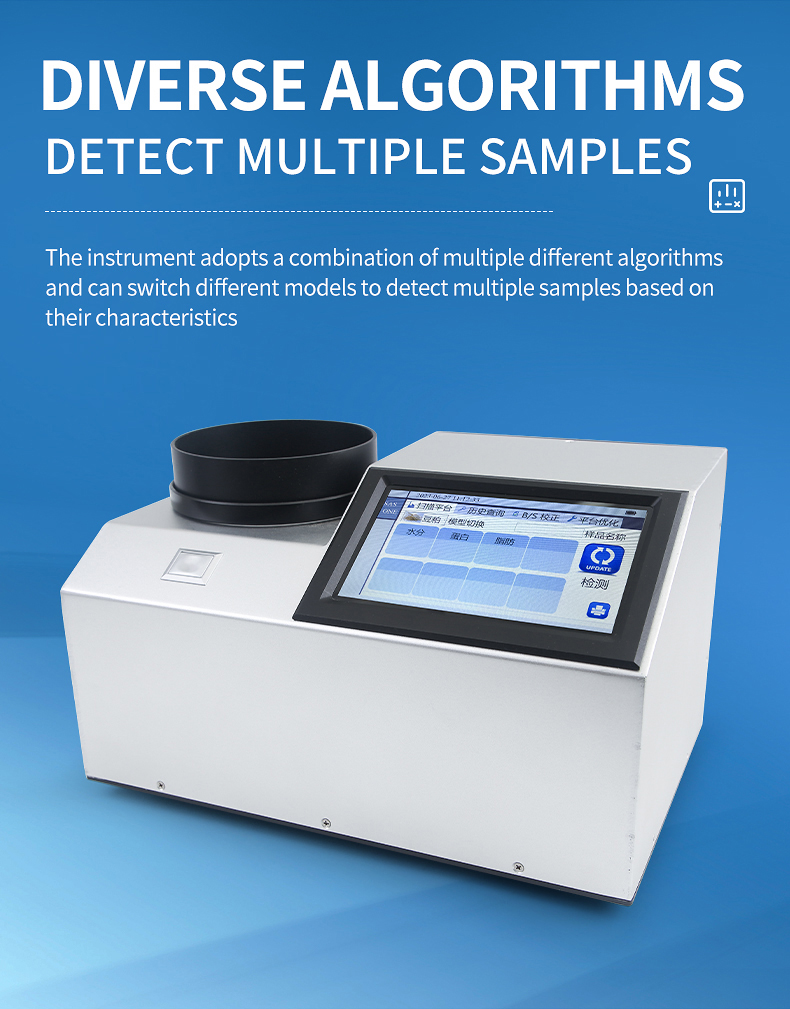

3. Diversity: The instrument adopts a variety of different algorithm combinations, which can switch different models to detect multiple samples based on different sample characteristics.

4. Diversified power supply: detachable battery with adapter

5. Voice operation: The machine can be operated through voice commands

6. Convenient to carry: 6KG weight, easy to carry

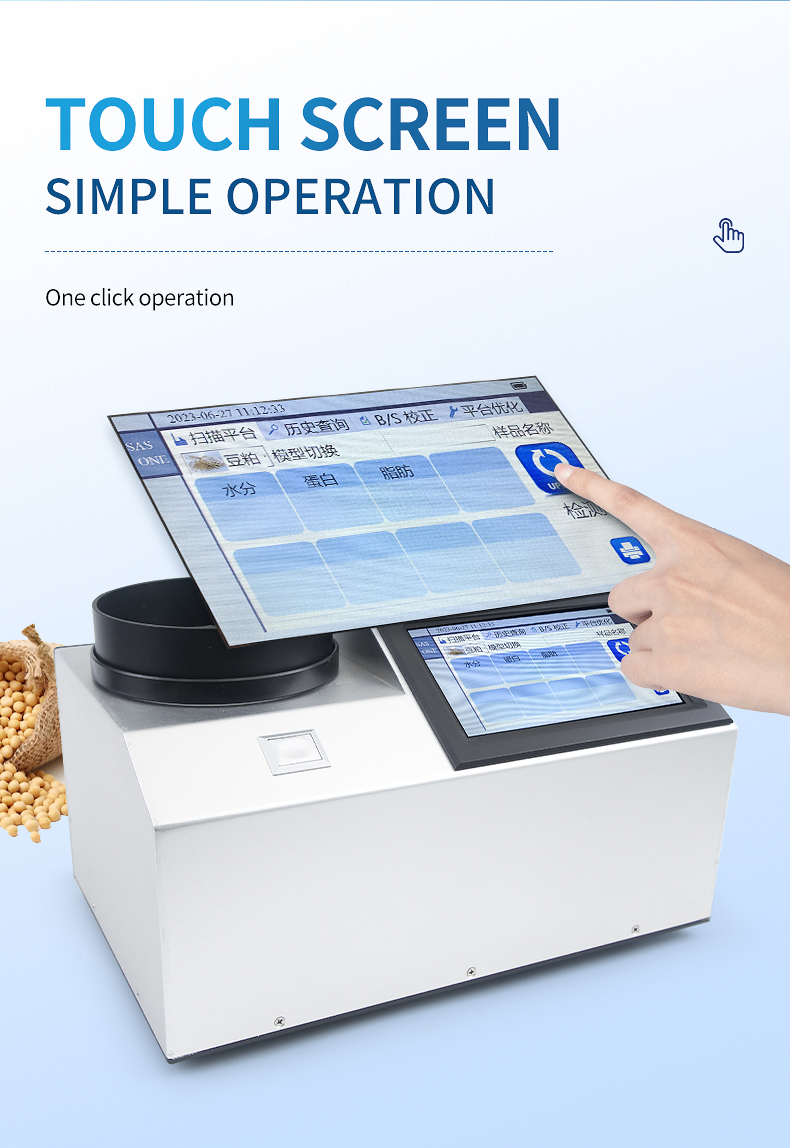

7. Easy to operate: one click operation

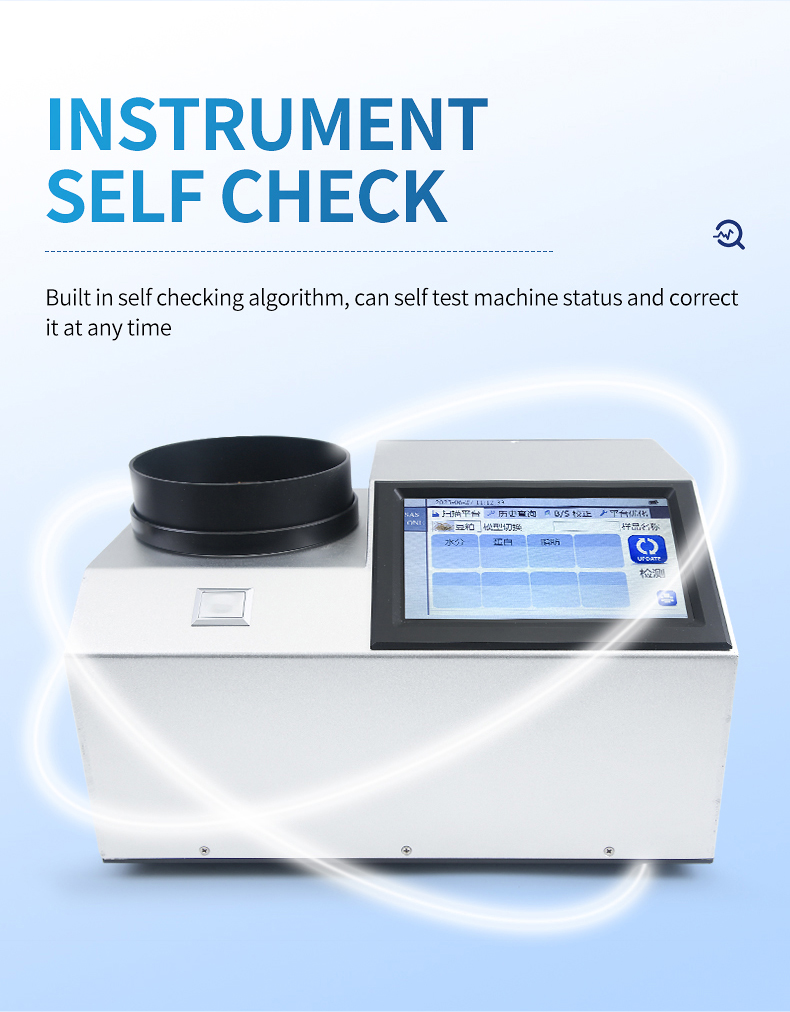

8. Instrument self-test: Built in self-test algorithm, can self-test the machine status and correct it at any time

9. Remote customer service: Built in remote customer service, manufacturers remotely operate machines to solve problems for customers

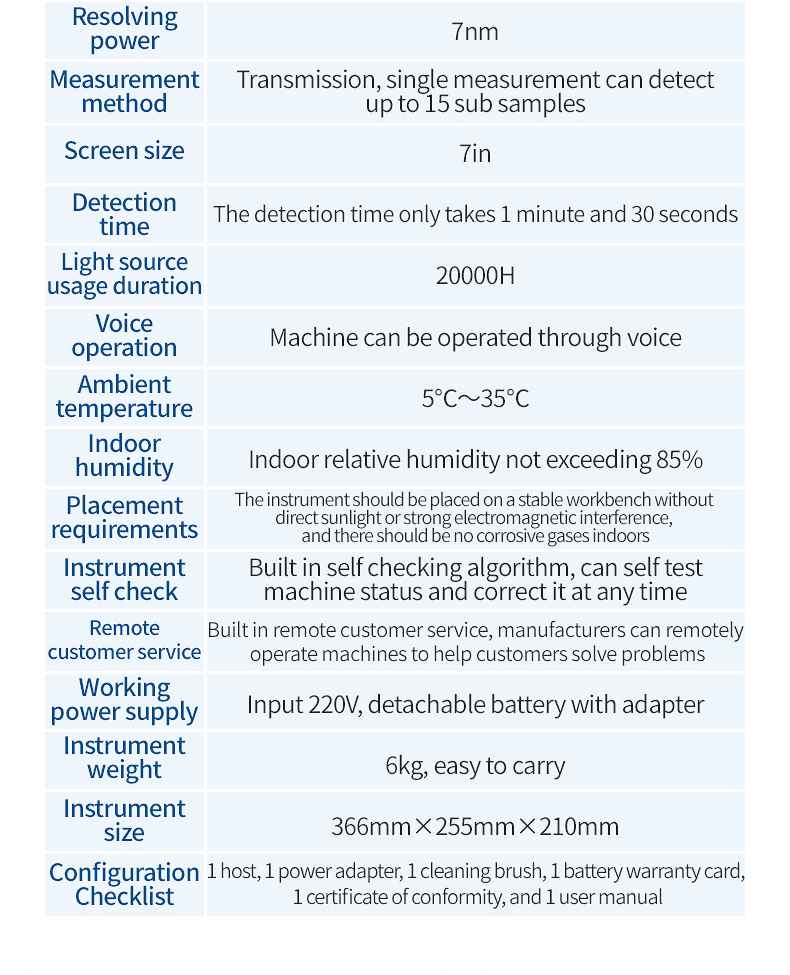

Product parameters

Main technical indicators of the instrument

Spectral range: 900-1700nm;

Resolution: 7nm;

Measurement method: diffuse reflectance, up to 15 sub samples can be detected in a single measurement.

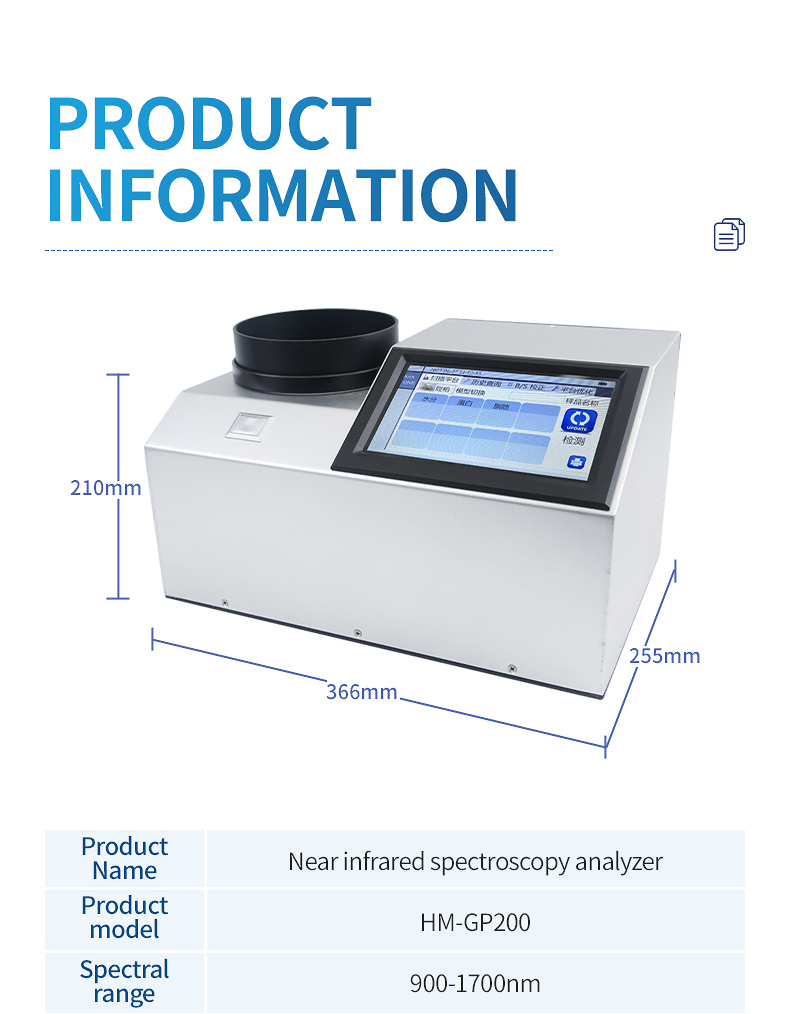

Instrument size: 366mm X 255mm X 210mm

Instrument weight: 6kg;

Screen size: 7 inches;

Light source usage duration: 20000H

1. Environmental temperature 5 ℃~35 ℃

2. Indoor relative humidity not exceeding 85%

3. The instrument should be placed on a stable workbench, free from direct sunlight and strong electromagnetic interference

4. Indoor non corrosive gas

5. Working power supply: Input 220V

Configuration List

1. 1 host

2. 1 power adapter

3. 1 cleaning brush

4. 1 battery

5. 1 copy of warranty card and certificate of conformity

6. 1 user manual
