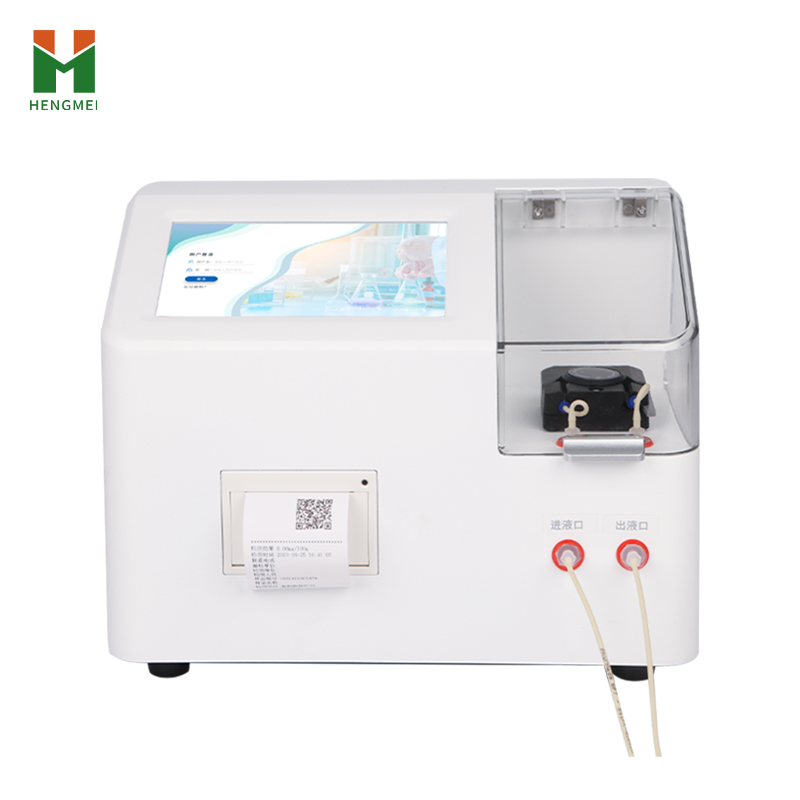

Fully Automatic Fatty Acid Analyzer for Grain Storage

Fatty acid value is a key indicator for evaluating the quality and freshness of grain storage. This article is based on the principle of potentiometric titration, and deeply analyzes the technical characteristics, performance advantages, and application value of the fully automatic fatty acid value analyzer in grain quality and safety control, providing professional technical reference for grain storage and processing enterprises.

The importance of fully automatic fatty acid value analyzer

Fatty acid value is an important parameter for determining the quality deterioration of grains such as rice and corn during storage. The traditional chemical titration method is cumbersome to operate, subjective in endpoint judgment, and has poor repeatability of results. The fully automatic fatty acid value analyzer automatically determines the endpoint through potential jump, achieving standardization and automation of the detection process, significantly improving the objectivity and accuracy of the detection results.

This fully automatic fatty acid value tester strictly follows national standards such as GB/T 20569 and GB/T 20570, and is specifically designed for detecting the fatty acid value of grains, providing a reliable technical means for controlling grain quality and safety.

Working principle and technical characteristics

1. Core detection principle

Using potentiometric titration method, the electrode potential jump is used as the criterion for determining the endpoint of titration

Realize automatic addition and metering of reagents through a precision pump control system

The measurement range covers 0-300mg KOH/100g dry matter, meeting various grain testing needs

2. Instrument system design

Android 7.1 intelligent operating system provides a good interactive experience

Professional dust cover design, effectively protecting peristaltic pumps and hoses

Compact structural design (325 × 190 × 250mm), weighing only 3.5kg

Technical advantages and performance parameters

1. Performance testing

Resolution: 0.01mg KOH/100g, ensuring detection accuracy

• Repeatability: ≤ 2mg/100g, ensuring consistency of results

Coefficient of variation (CV): When the fatty acid value is greater than 12mg/100g, CV≤4%

2. Operational efficiency

• Detection speed: ≤ 10 minutes/sample, greatly improving detection efficiency

Pump flow accuracy: RSD ≤ 1%, ensuring titration accuracy

The titration speed can be adjusted (0.5-10ml/min) to meet the needs of different samples

3. Intelligent functions

• Supports WiFi and Bluetooth wireless transmission for convenient data management

Equipped with a professional data platform that supports long-term data storage and analysis

Dual USB interfaces, supporting USB data copying

Application Fields and Solutions

1. Grain storage enterprises: Quality screening of incoming grain; Quality monitoring of stored grain; Identification and treatment of aged grains

2. Grain processing enterprises: Raw material quality acceptance; Quality control in the production process; Product Quality Rating

3. Quality supervision agency: Market spot checks and inspections; Food safety risk assessment; Standard Validation and Research

The fully automatic fatty acid value analyzer, as a key equipment for grain quality and safety control, has a direct impact on the accuracy of grain quality evaluation due to its technical level. Choosing a suitable fully automatic fatty acid value analyzer requires comprehensive consideration of factors such as detection performance, operational efficiency, and level of intelligence.
