Straight chain starch analyzer

Android intelligent operating system, peristaltic pump continuous injection device, integrated photoelectric detection unit, efficient detection product introduction:

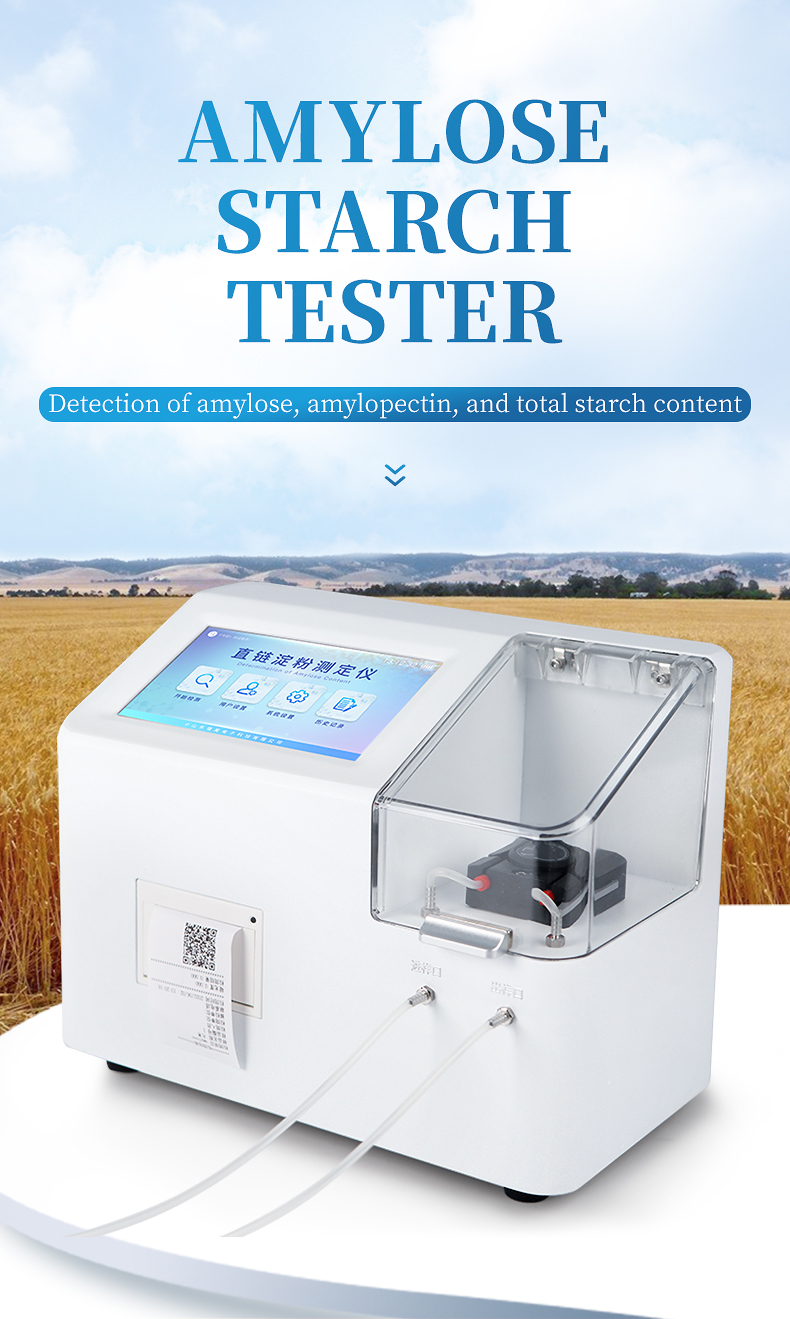

The new generation intelligent amylose analyzer integrates automatic sampling technology and photoelectric detection technology, and is a fast analysis equipment that can be used in laboratories and production sites for analyzing and testing grain amylose and amylopectin. This instrument can be used for rapid detection of amylose quality in grains such as rice, corn, wheat, millet, potatoes, etc. This instrument has a built-in standard working curve and is an ideal testing instrument for improving the detection level and efficiency of linear and branched starch in grain and food processing departments, as well as controlling the quality and cost of grain.

Instrument features:

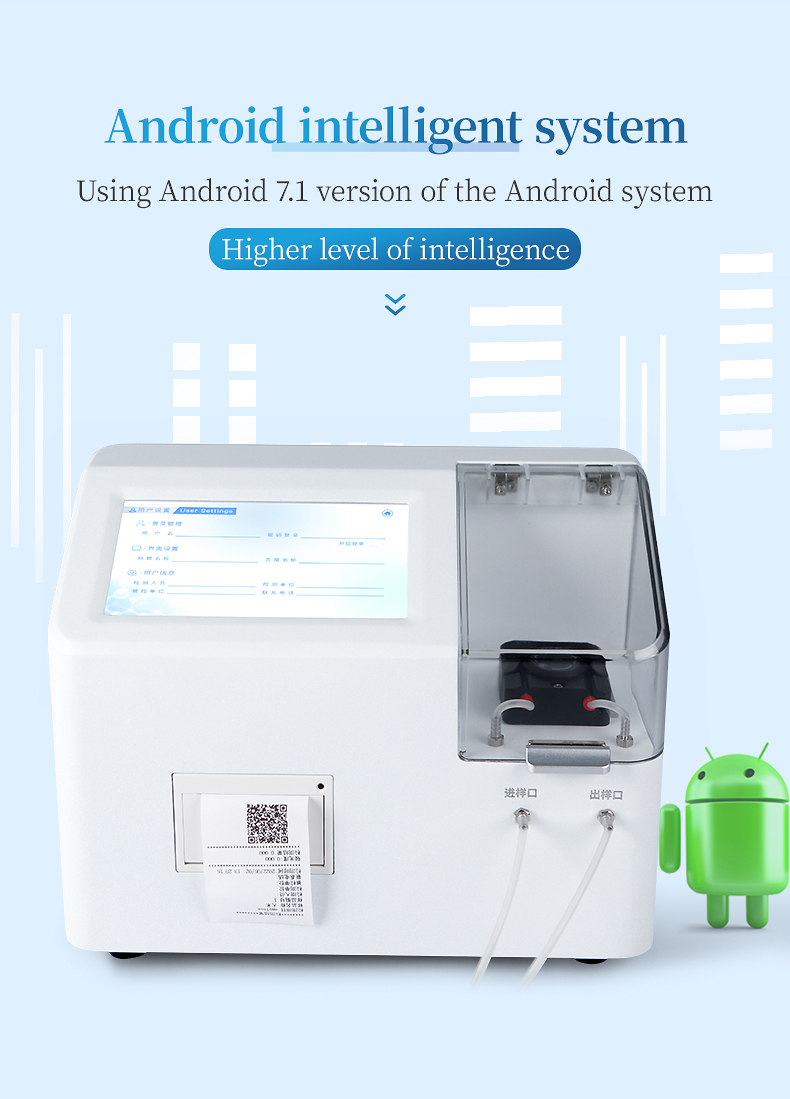

1. The device adopts the Android 7.1 version of the Android system, which has a higher degree of intelligence.

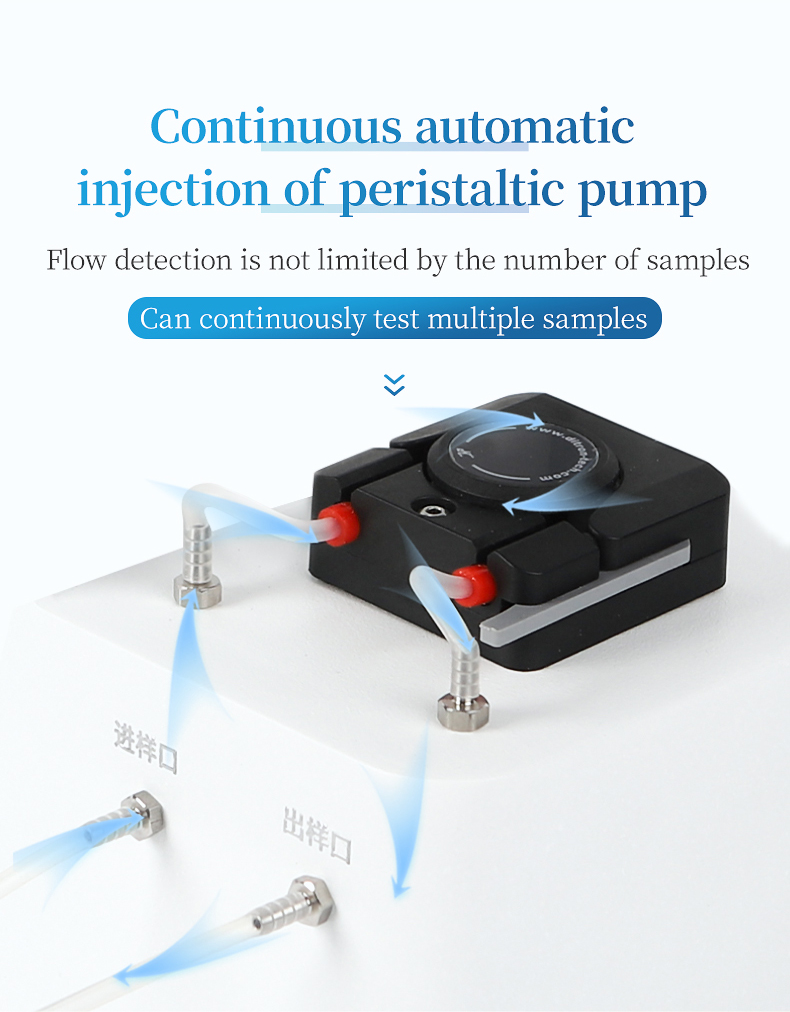

2. ★ Adopting a peristaltic pump for continuous automatic injection, flow detection is not limited by the number of samples and can continuously test multiple samples.

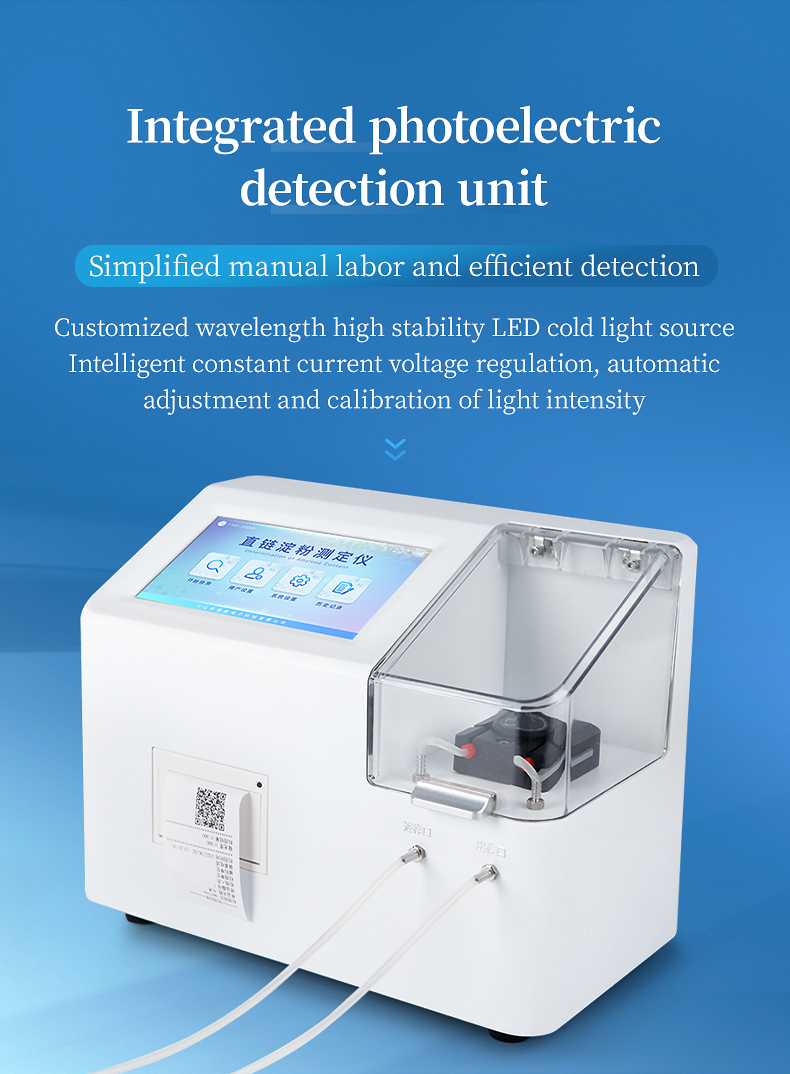

3. Integrated photoelectric detection unit simplifies manual labor and efficiently detects.

4. ★ Customized wavelength high stability LED cold light source, multiple lighting during the detection process to make the detection data more accurate.

5. Intelligent constant current and voltage stabilization, automatic adjustment and calibration of light intensity, and long-term continuous operation of the light source without temperature drift phenomenon.

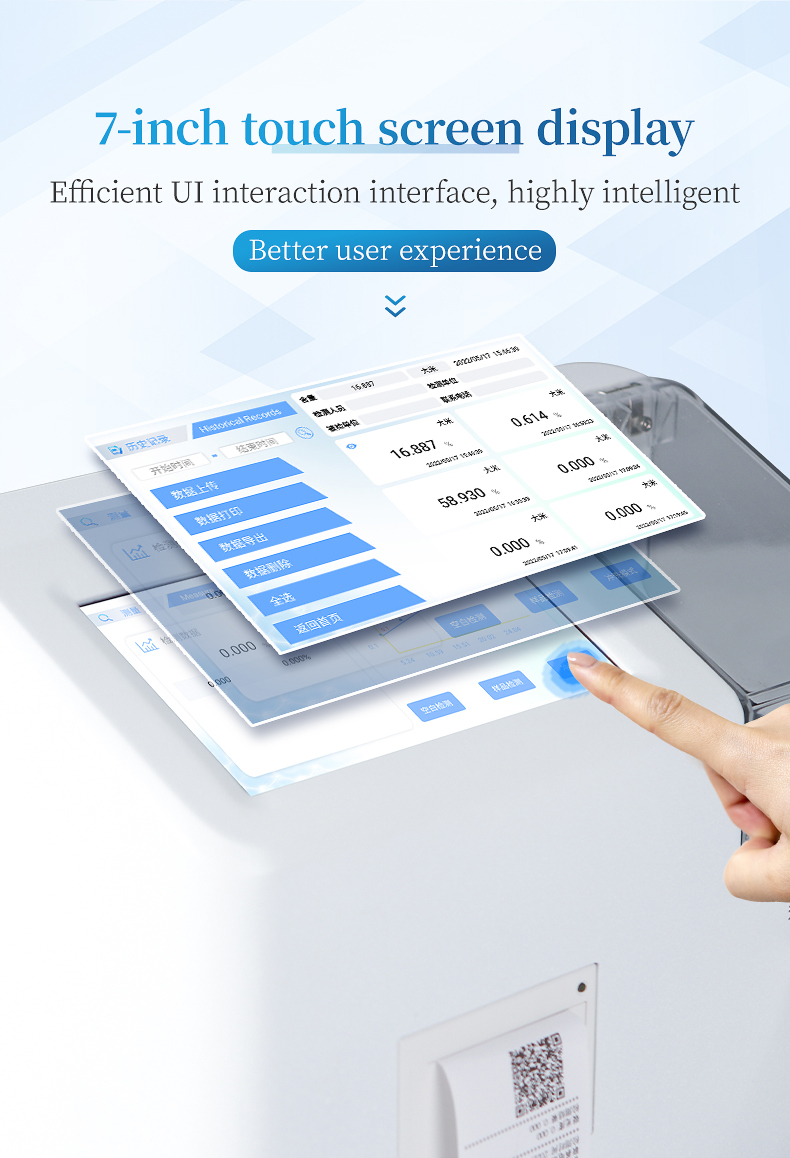

6. ★ 7-inch touch screen display, efficient UI interactive interface provides a better user experience for operation.

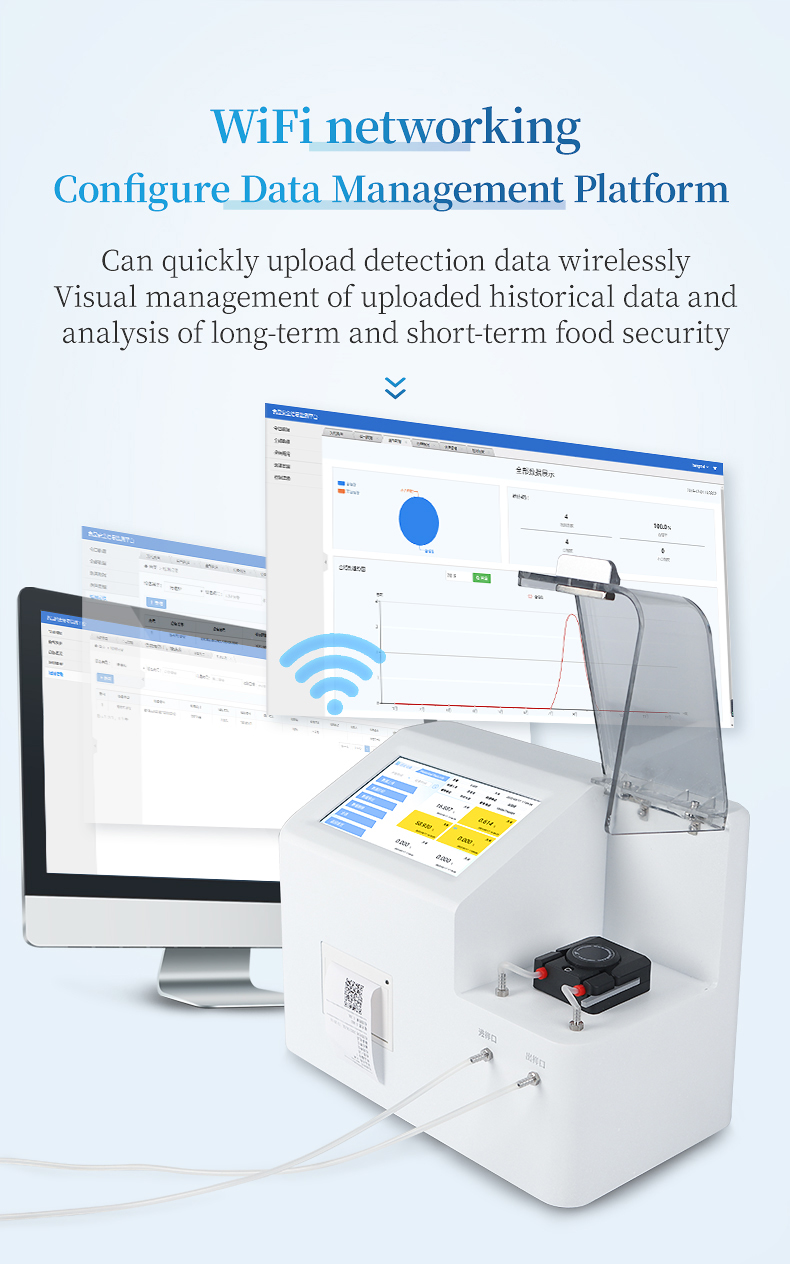

7. ★ It has WiFi networking function and can quickly upload detection data wirelessly.

8. ★ Configure a data management platform to visualize and manage uploaded historical data, as well as conduct long-term and short-term analysis of food security.

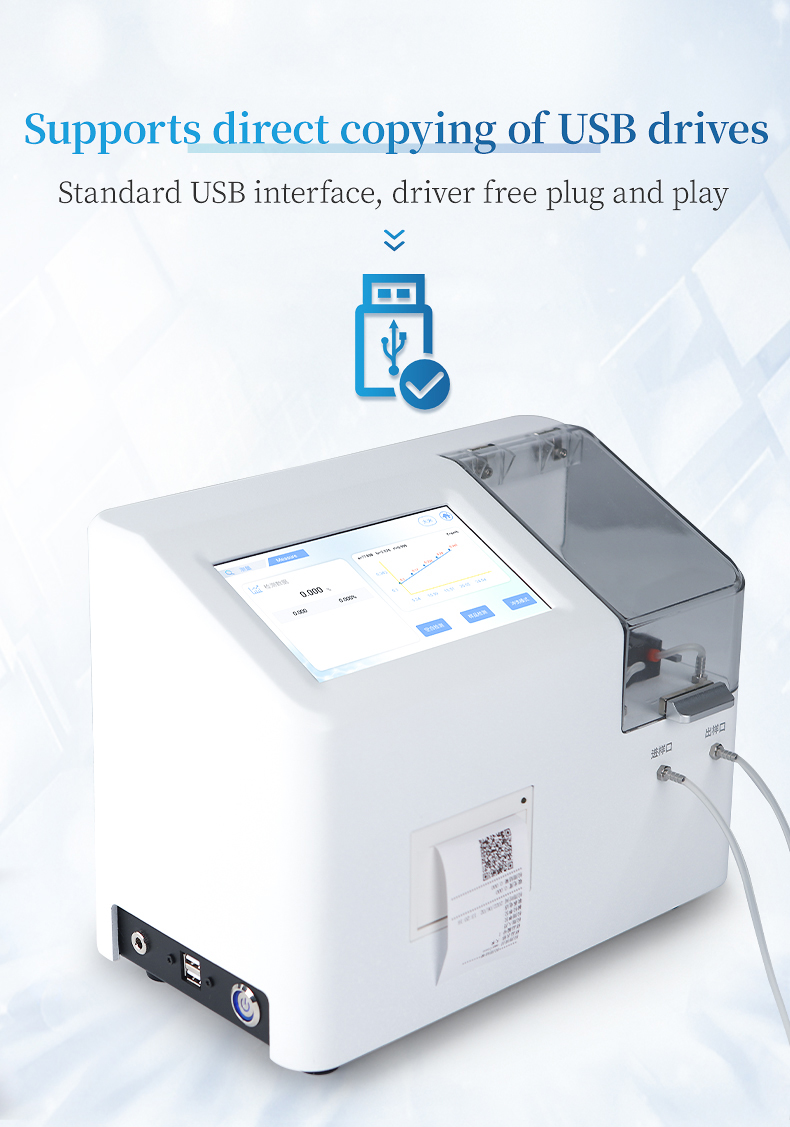

9. ★ It also supports direct copying of data from a USB flash drive, with a standard USB interface and no need for driver insertion and removal.

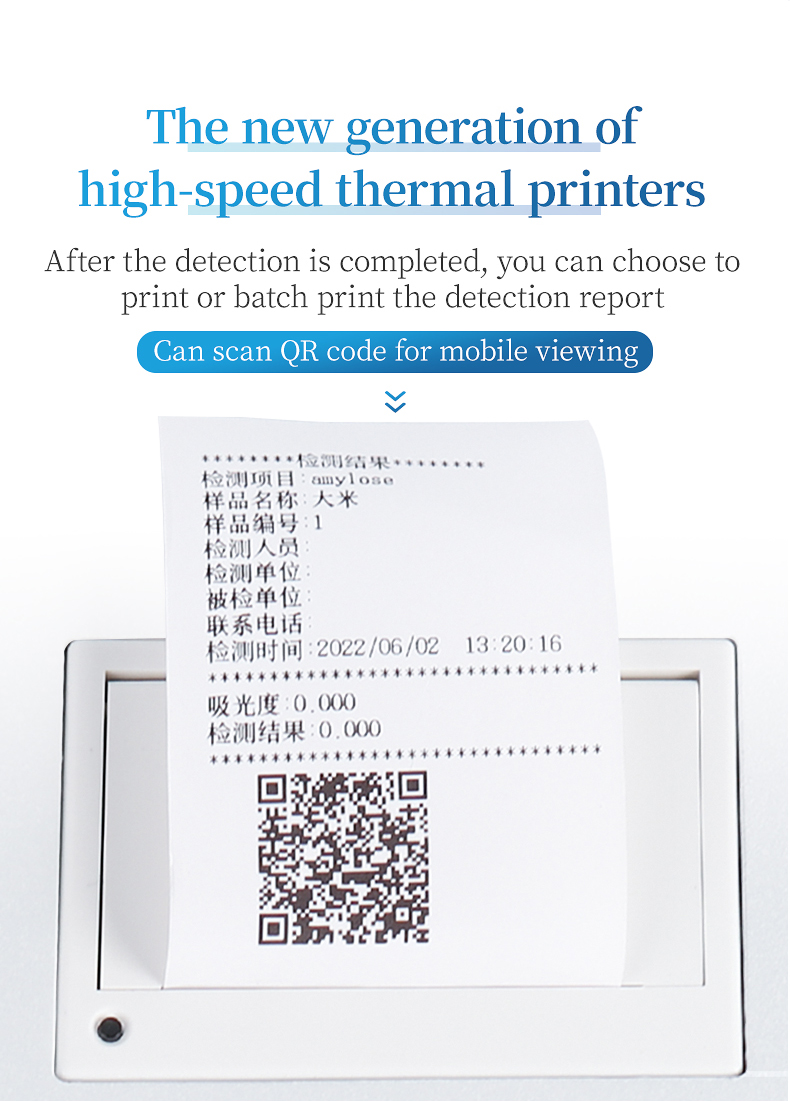

10. The new generation of high-speed thermal printers allows for the selection of printing or batch printing of inspection reports upon completion of testing.

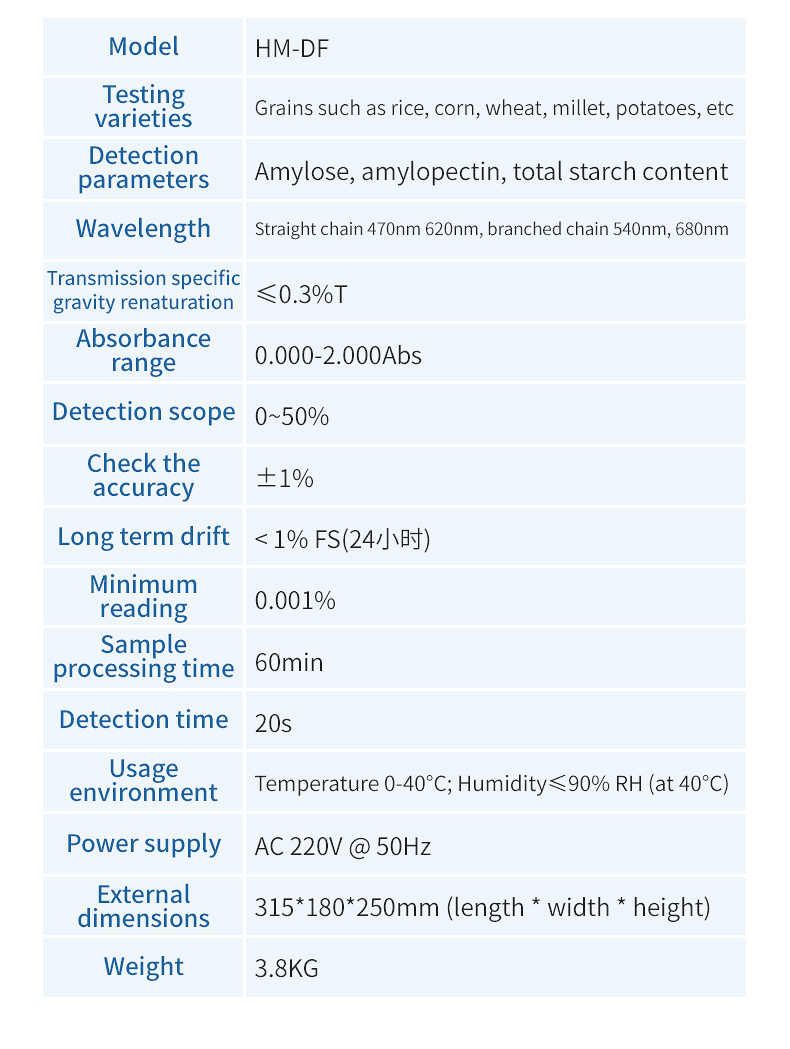

Main technical parameters:

Testing varieties: rice, corn, wheat, millet, potatoes and other grain crops;

Detection parameters: amylose, amylopectin, total starch content;

Four wavelength light source: straight chain 470nm 620nm, branched chain 540nm, 680nm

Transmission density repeatability: ≤ 0.3% T

Absorption range: 0.000-2.000 Abs

Detection range: 0-50%;

Detection accuracy: ± 1%;

Long term drift:<1% FS (24 hours);

Small reading: 0.001%

Sample processing time: 60 minutes

Testing time: 20 seconds

Usage environment: temperature 0~40 ° C; humidity ≤ 90% RH (at 40 ° C)

Power supply: AC 220V @ 50Hz;

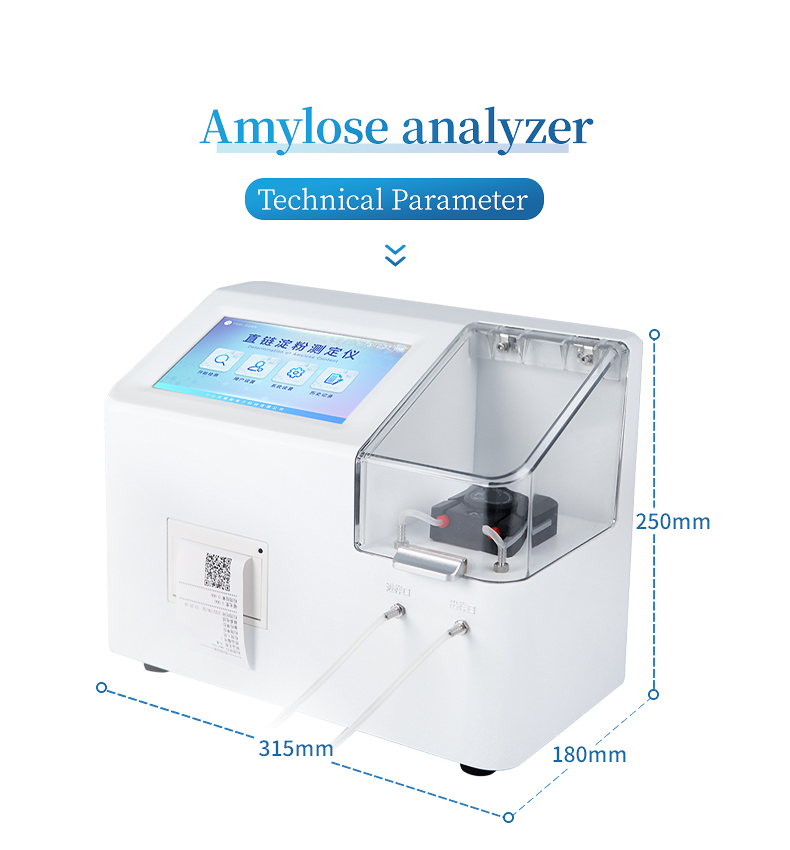

Dimensions: 315 * 180 * 250mm (length * width * height);

Weight: 3.8KG
